Extraction of Dominant Extremal Structures in Volumetric Data using Separatrix Persistence Corresponding Publication

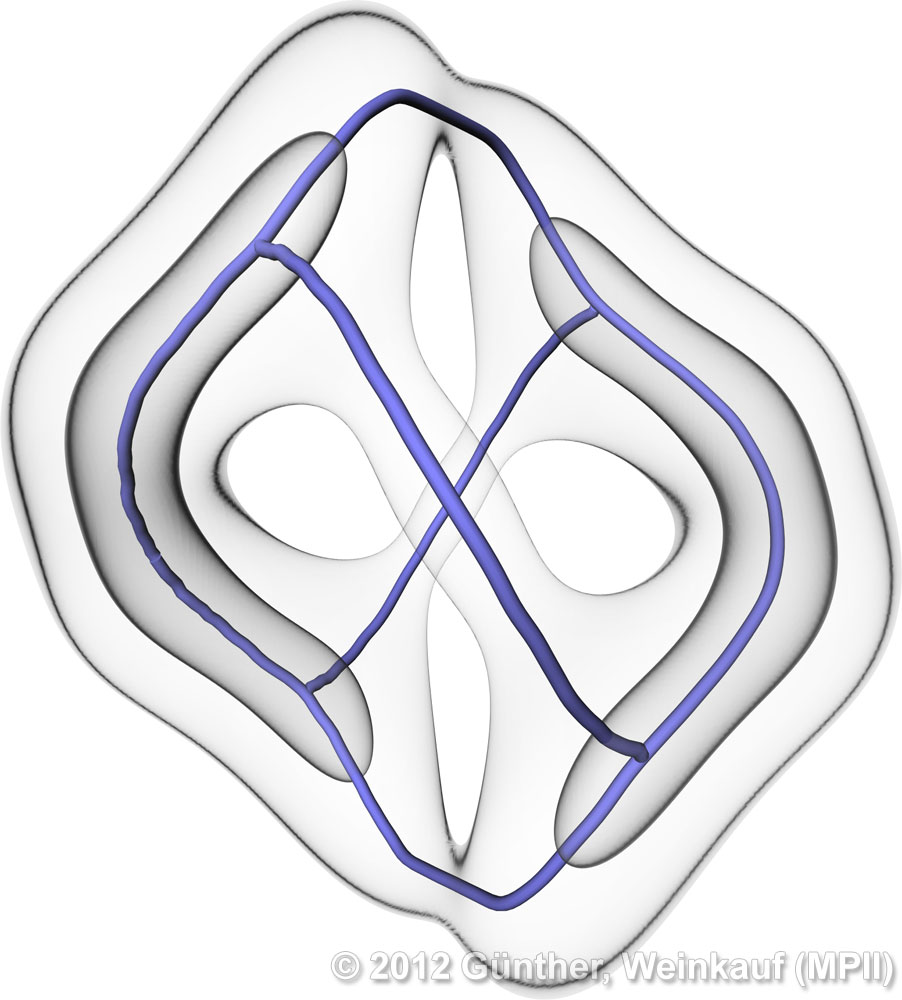

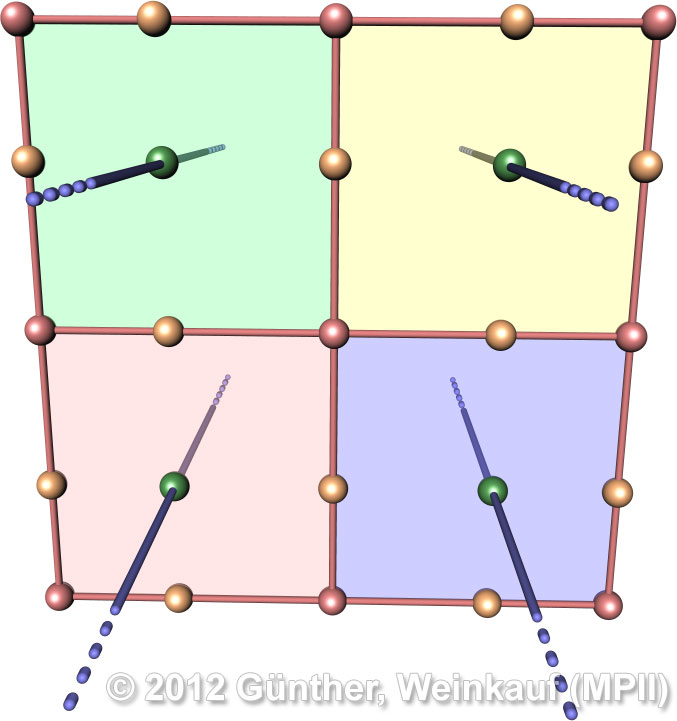

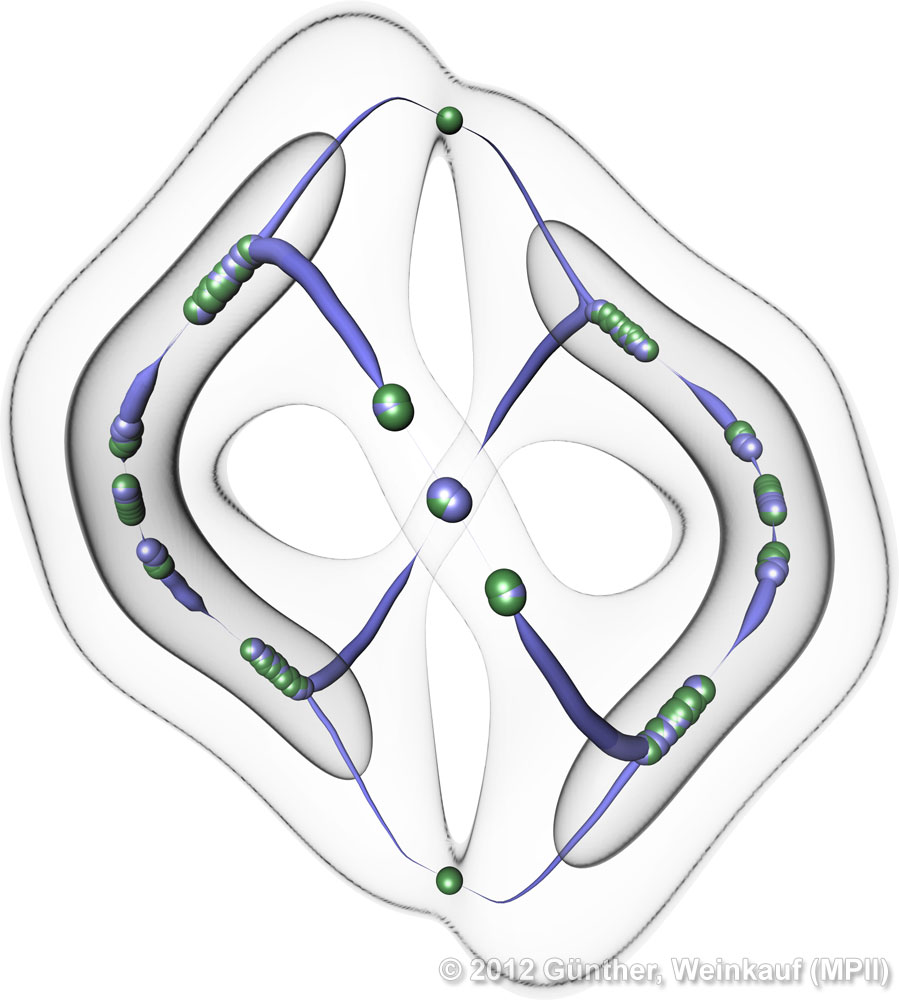

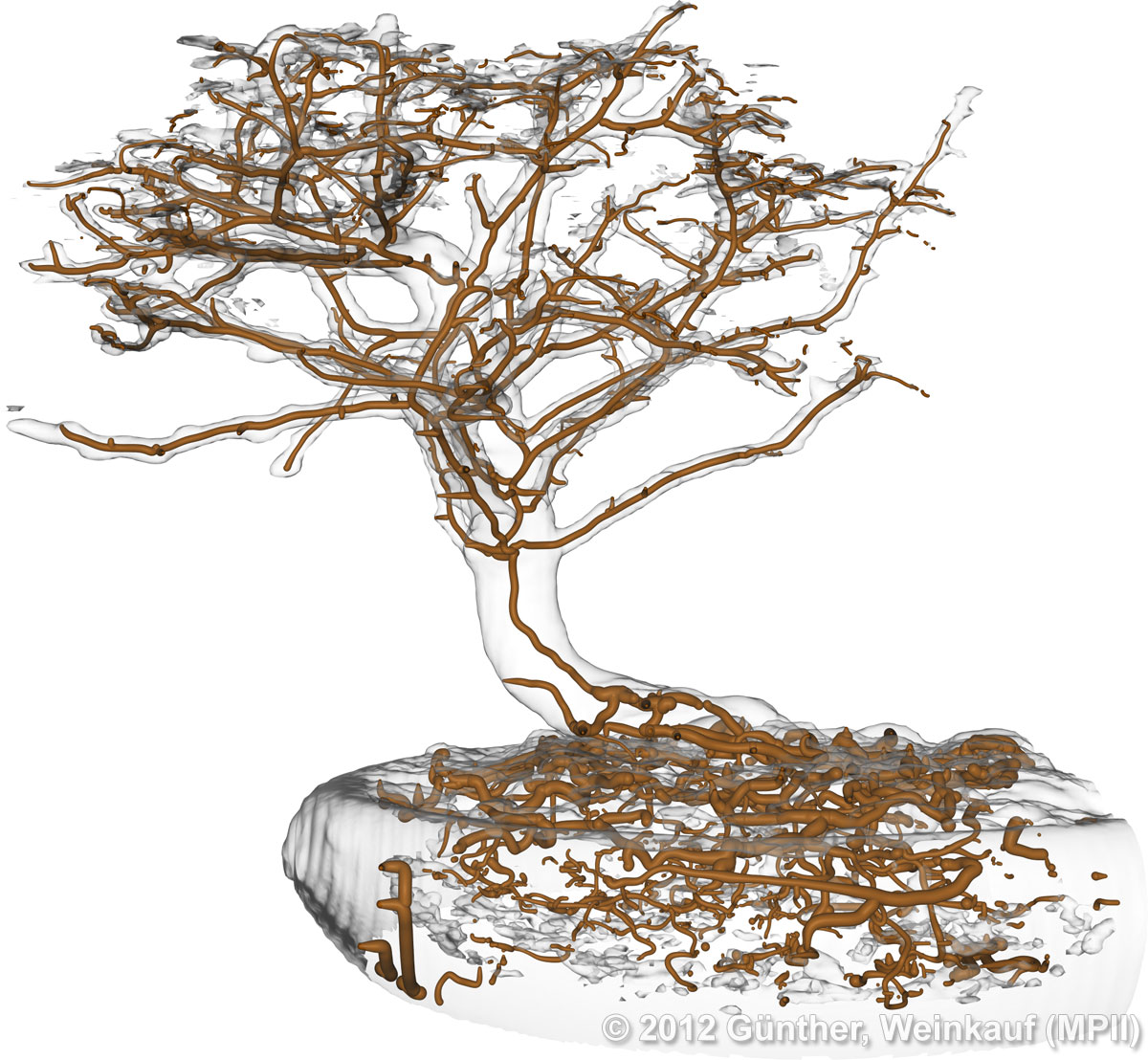

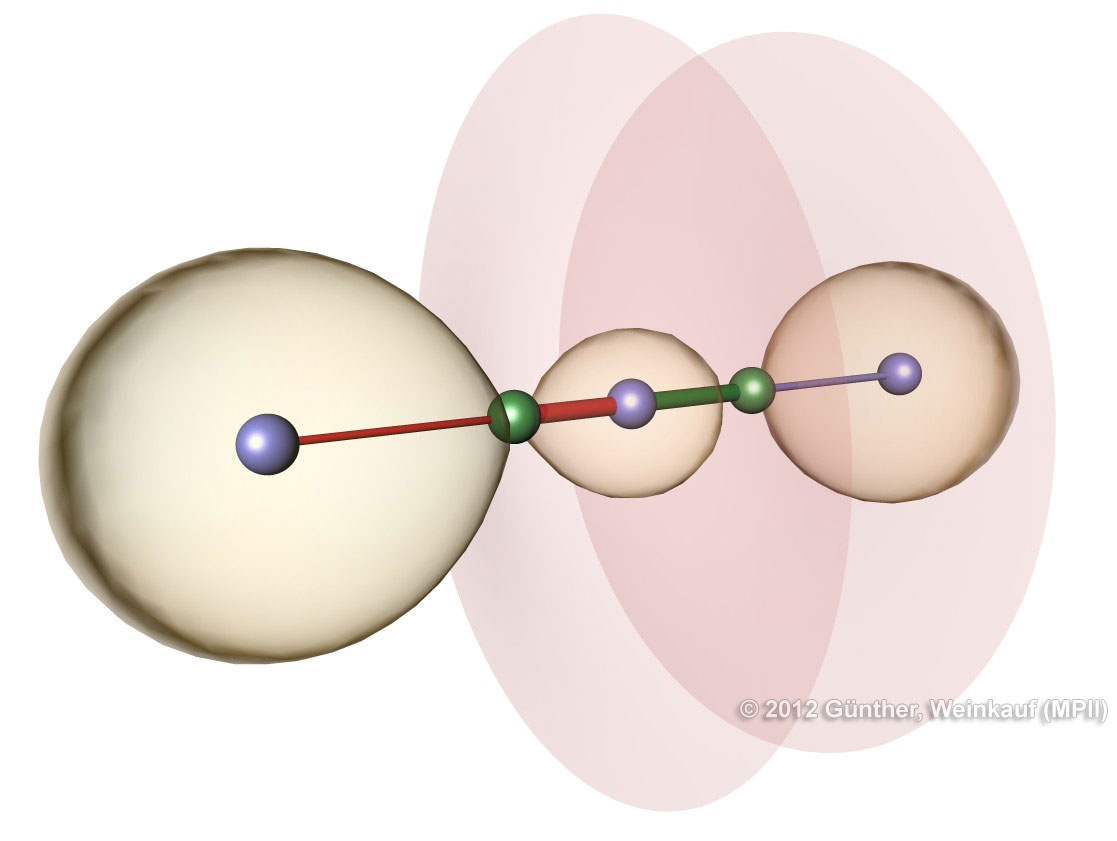

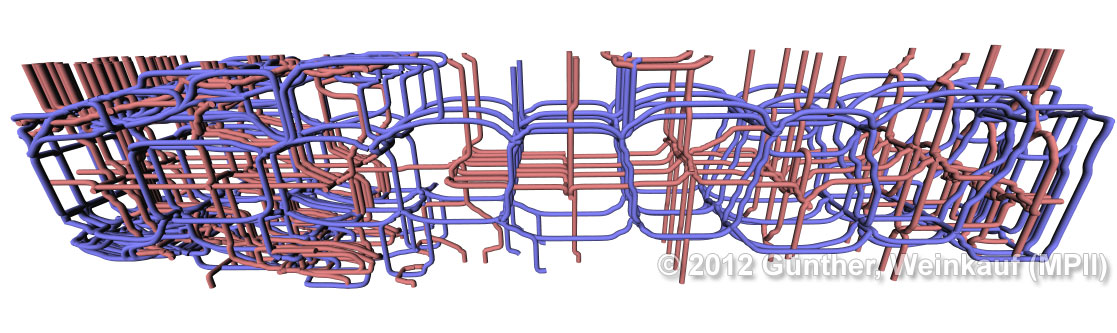

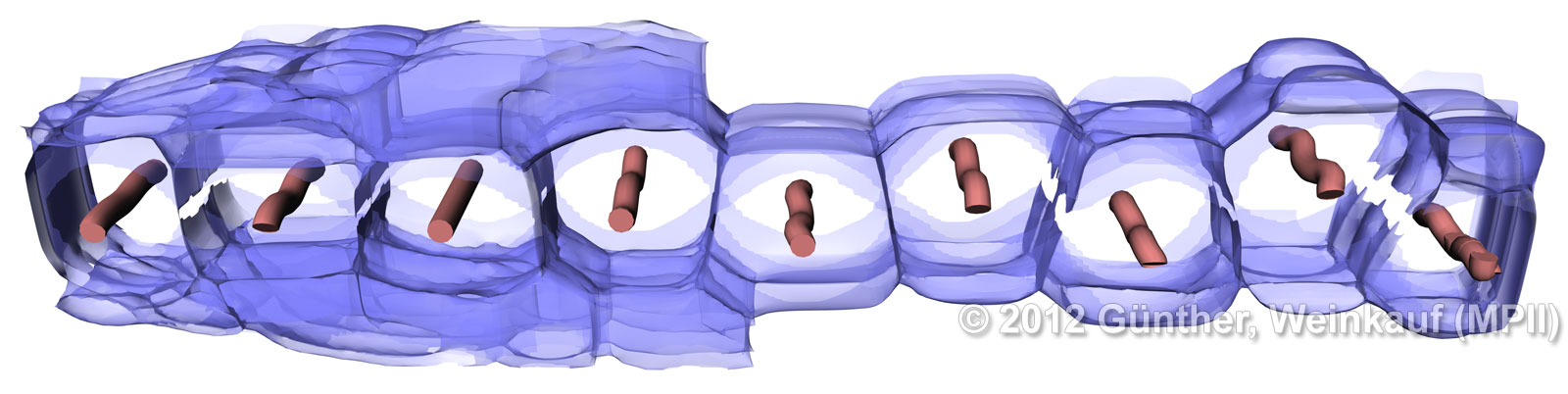

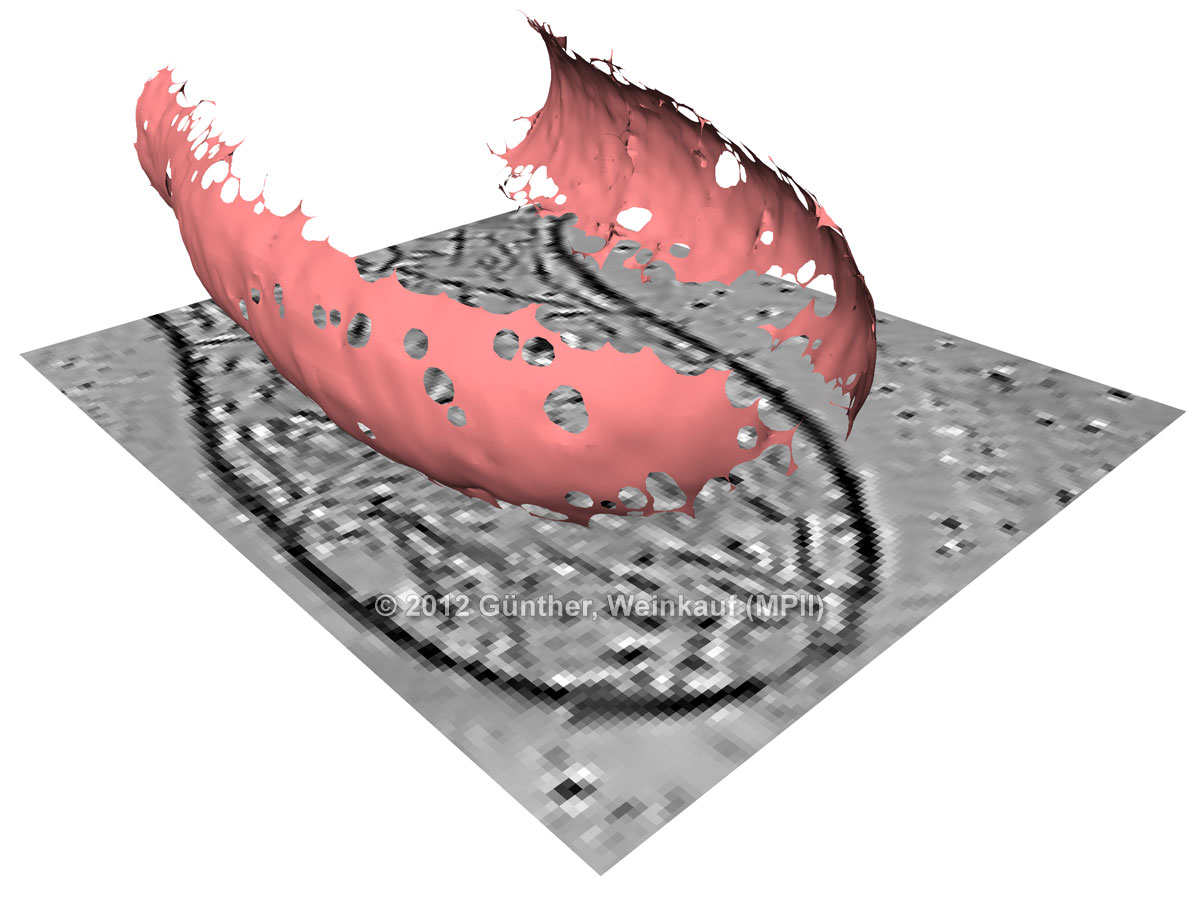

Logo Extremal lines and surfaces are features of a 3D scalar field where the scalar function becomes minimal or maximal with respect to a local neighborhood. These features are important in many applications, e.g., computer tomography, fluid dynamics, cell biology. We present a novel topological method to extract these features using discrete Morse theory. In particular, we extend the notion of Separatrix Persistence from 2D to 3D, which gives us a robust estimation of the feature strength for extremal lines and surfaces. Not only does it allow us to determine the most important (parts of) extremal lines and surfaces, it also serves as a robust filtering measure of noise-induced structures. Our purely combinatorial method does not require derivatives or any other numerical computations. D. Günther, H.-P. Seidel, T. Weinkauf
Extraction of Dominant Extremal Structures in Volumetric Data using Separatrix Persistence
Computer Graphics Forum 31(8), December 2012
[slideshow]

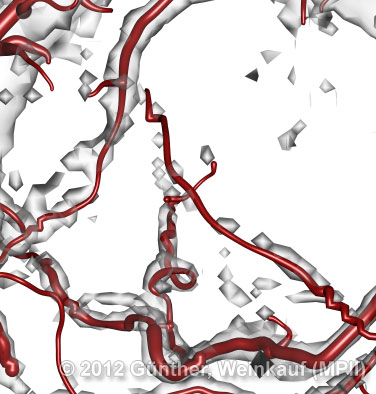

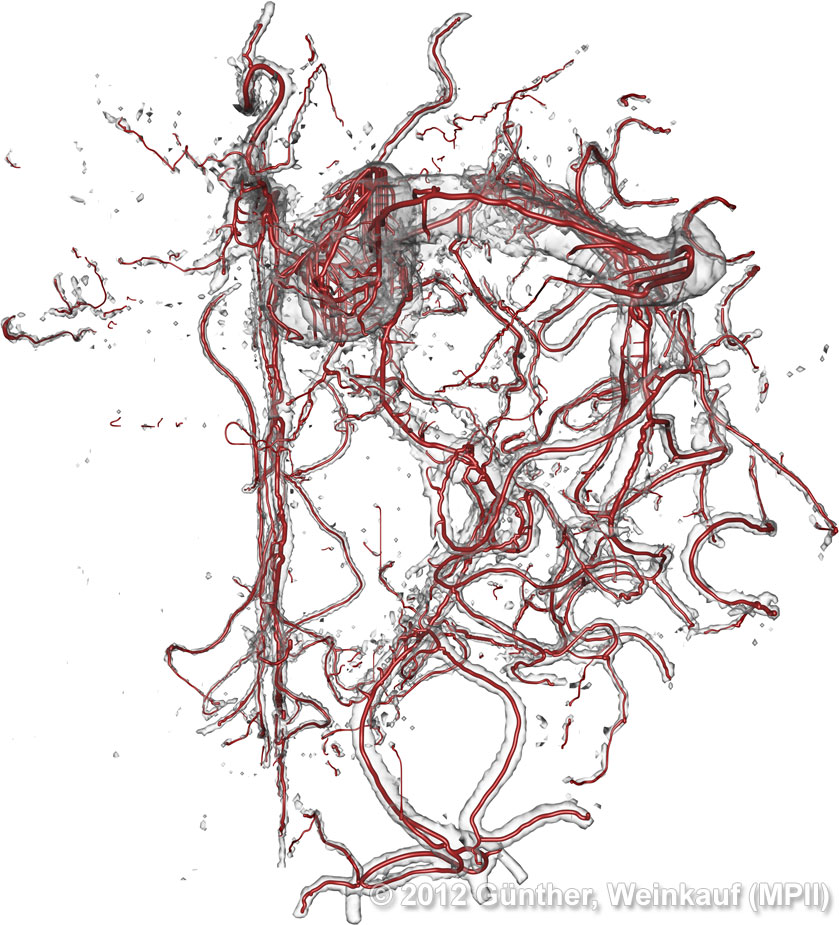

aneurism_lines
aneurism_lines
aneurism_lines_zoomIn
aneurism_lines_zoomIn

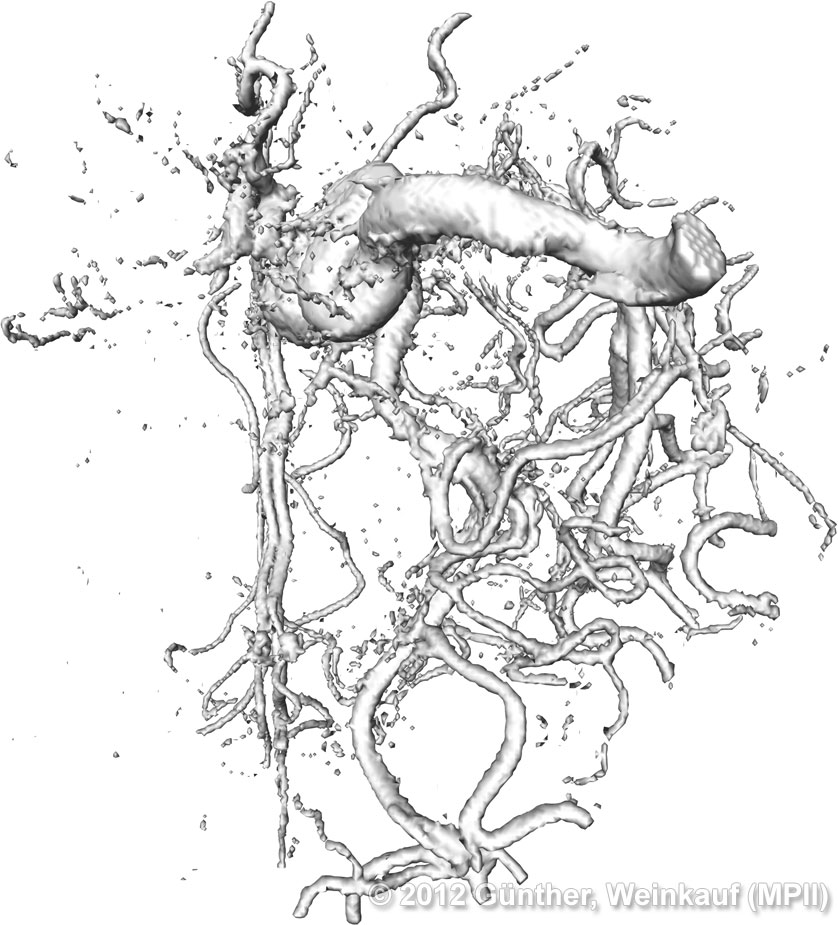

aneurism_surface
aneurism_surface
aneurism_surface_zoomIn
aneurism_surface_zoomIn

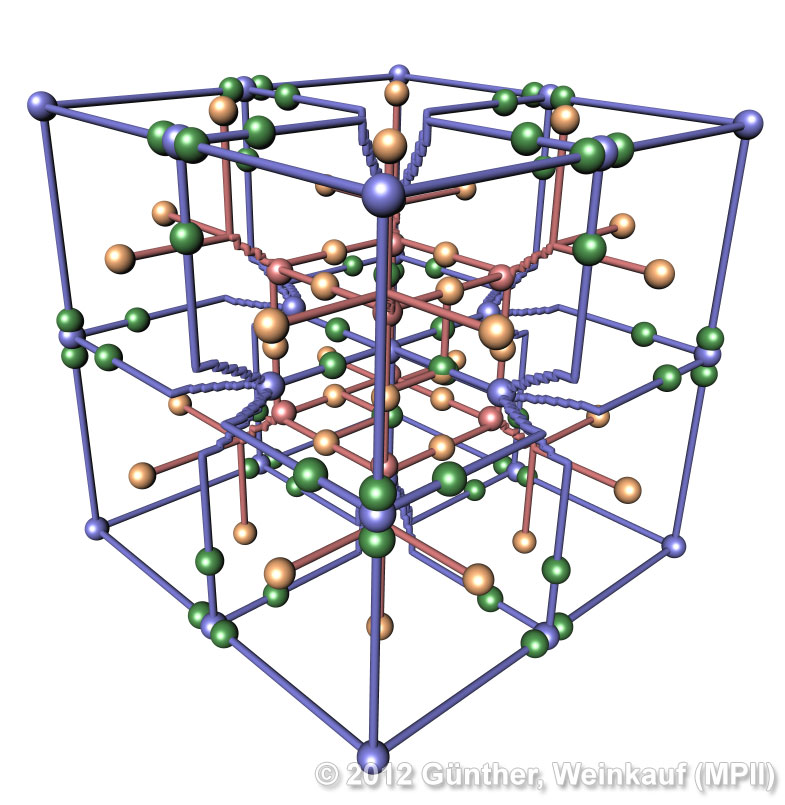

artificial_initial
artificial_initial

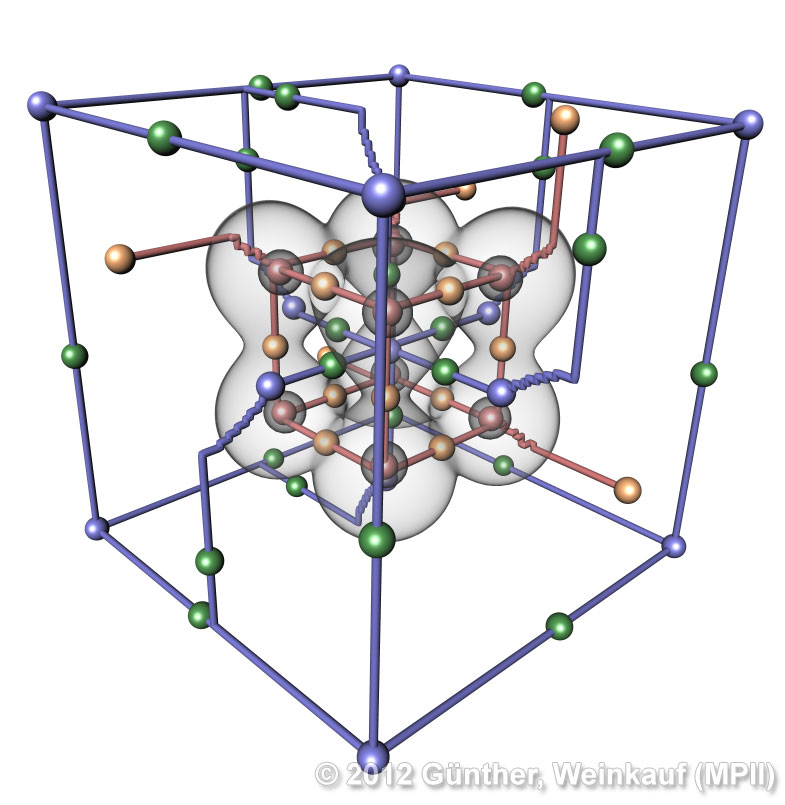

artificial_persistenceAndData
artificial_persistenceAndData

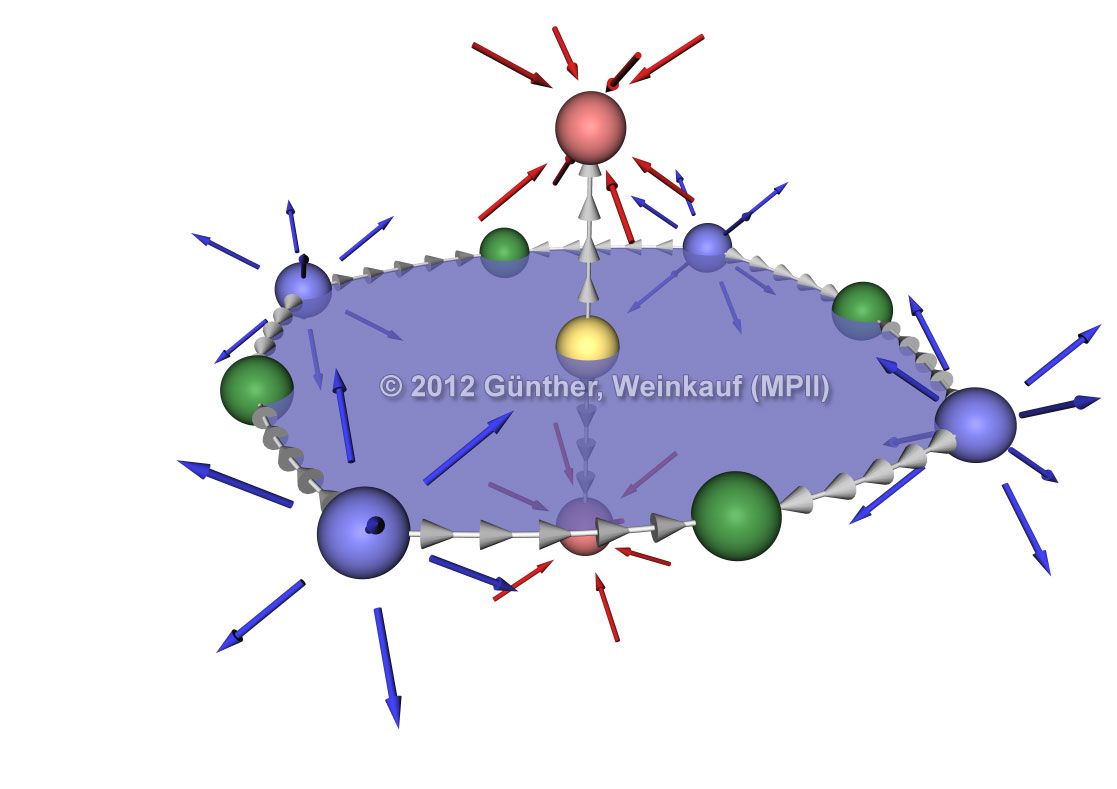

attractingSurface
attractingSurface

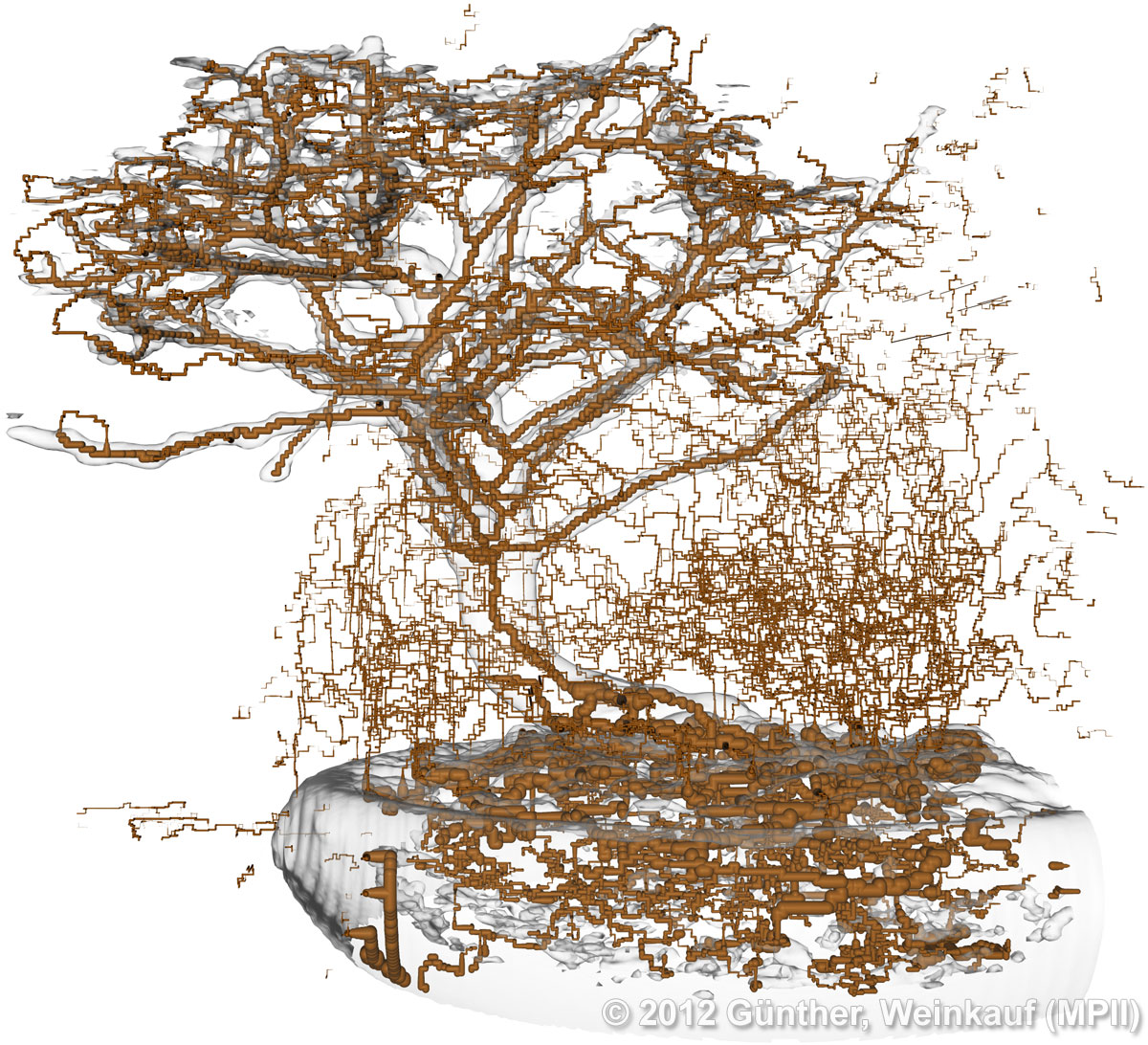

BonsaiSepAll
BonsaiSepAll

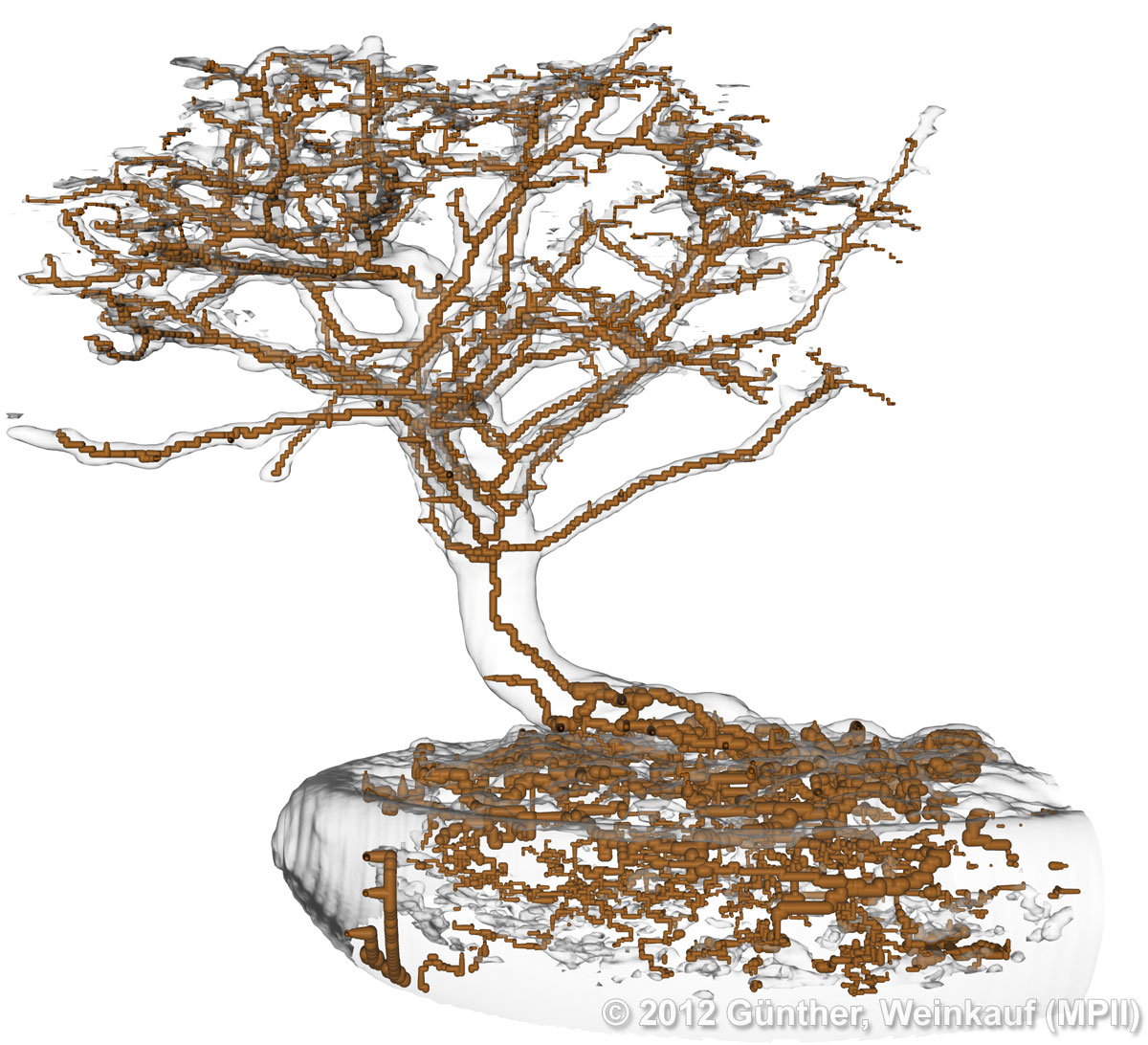

BonsaiSepFiltered
BonsaiSepFiltered
BonsaiSepFilteredSmooth
BonsaiSepFilteredSmooth
bonsai_ridges_allLines_cropped
bonsai_ridges_allLines_cropped
bonsai_ridges_angleFilter_cropped
bonsai_ridges_angleFilter_cropped

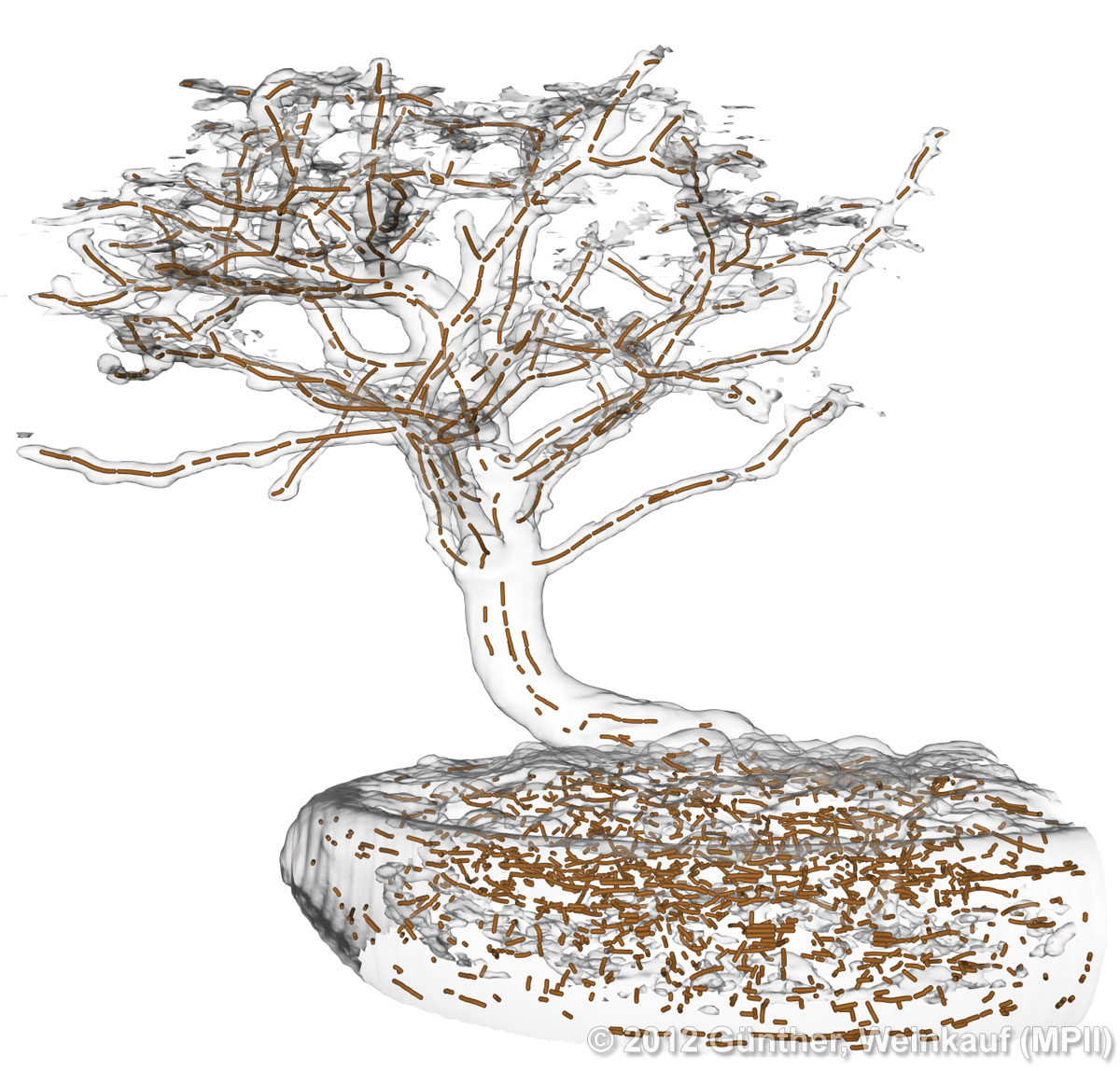

bonsai_ridges_thresholdFilter_cropped
bonsai_ridges_thresholdFilter_cropped

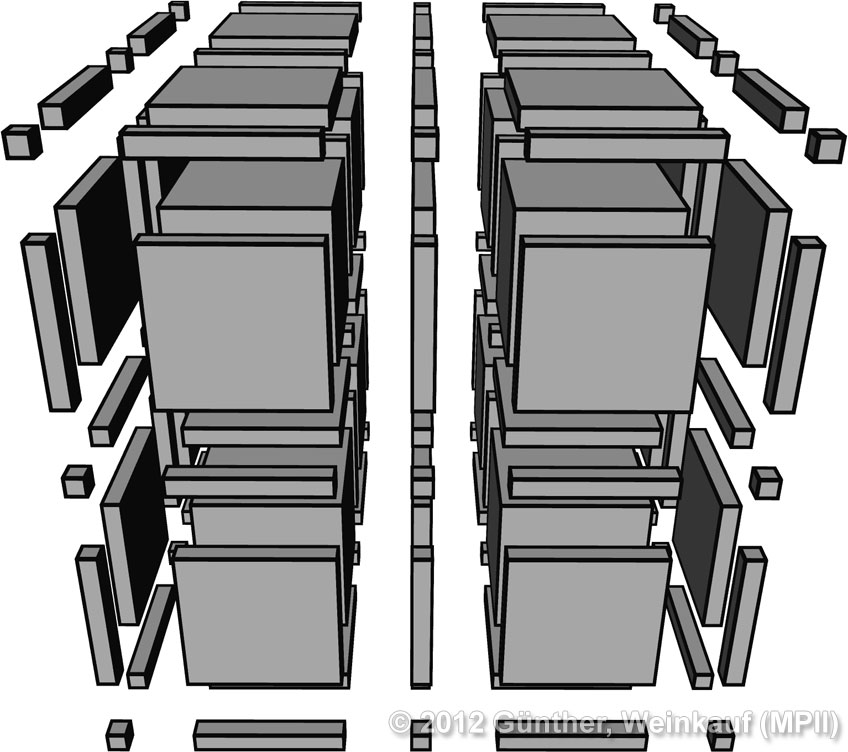

cellComplex
cellComplex

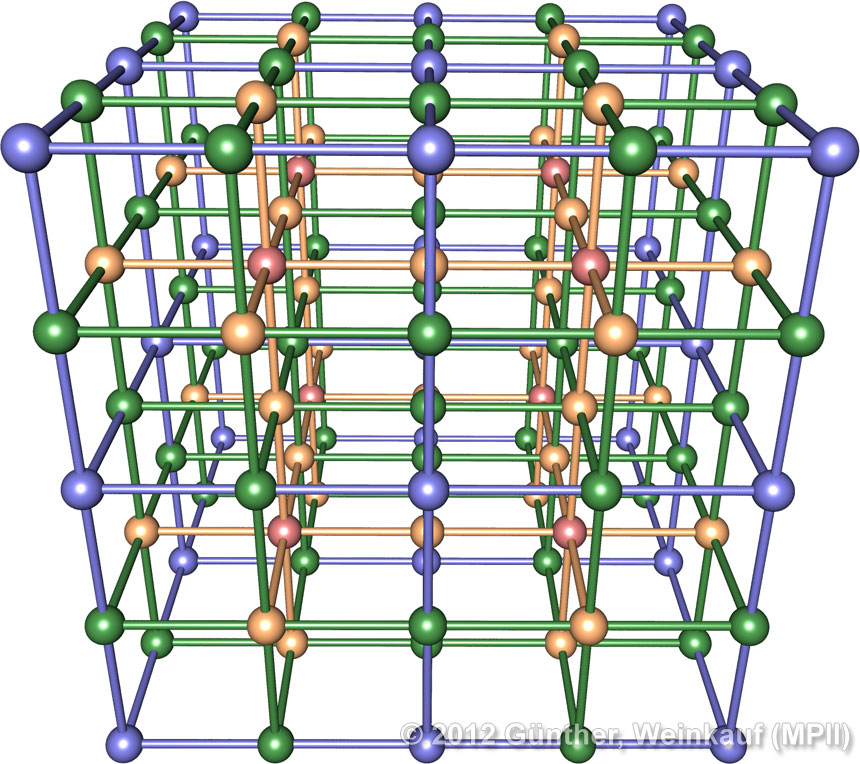

cellGraph_v2
cellGraph_v2

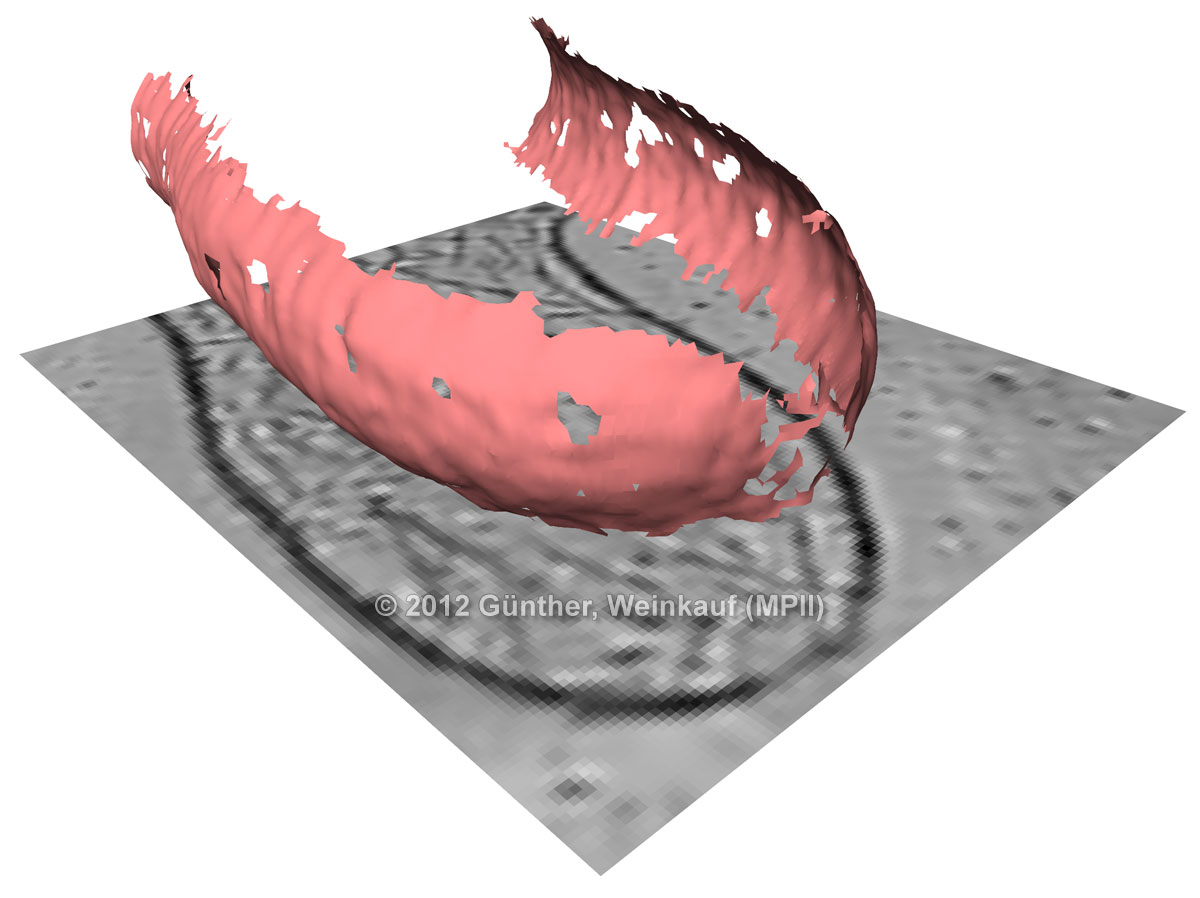

cellMembrane_gaussData_ridgeSurface
cellMembrane_gaussData_ridgeSurface

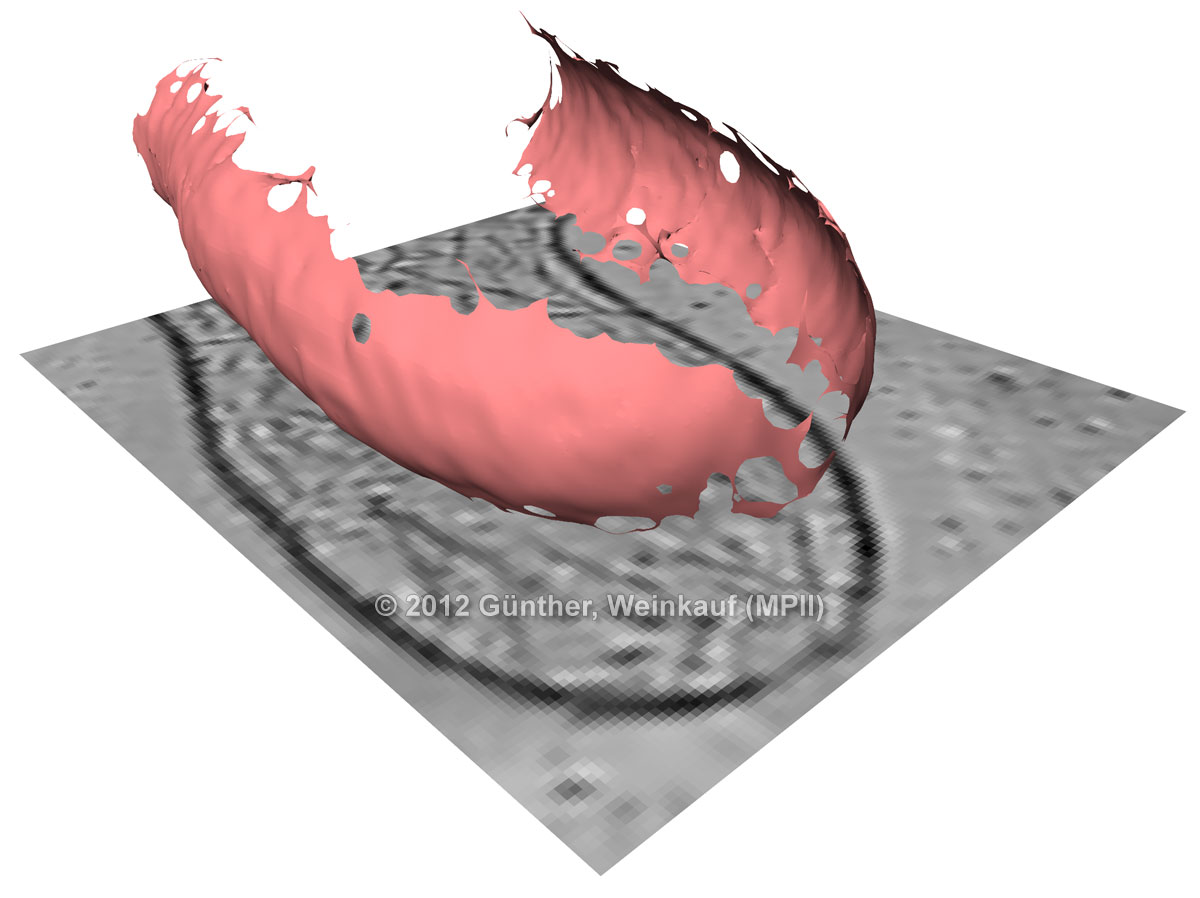

cellMembrane_gaussData_sepSurface
cellMembrane_gaussData_sepSurface
cellMembrane_origData_ridgeSurface
cellMembrane_origData_ridgeSurface
cellMembrane_origData_sepSurface
cellMembrane_origData_sepSurface

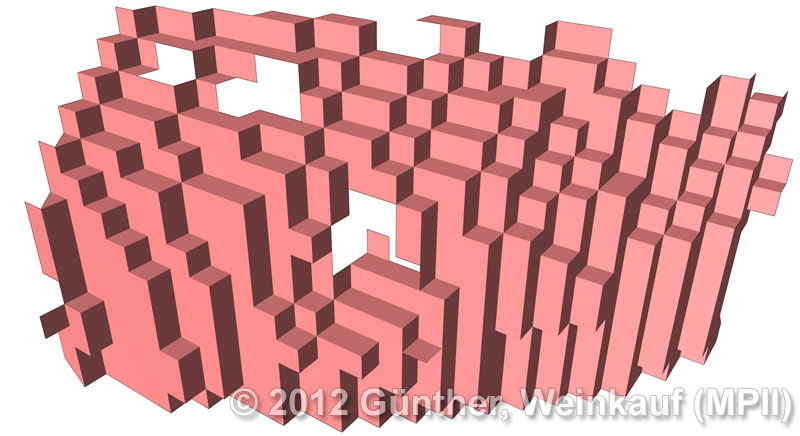

discreteSurface
discreteSurface
extensionLine_v1
extensionLine_v1

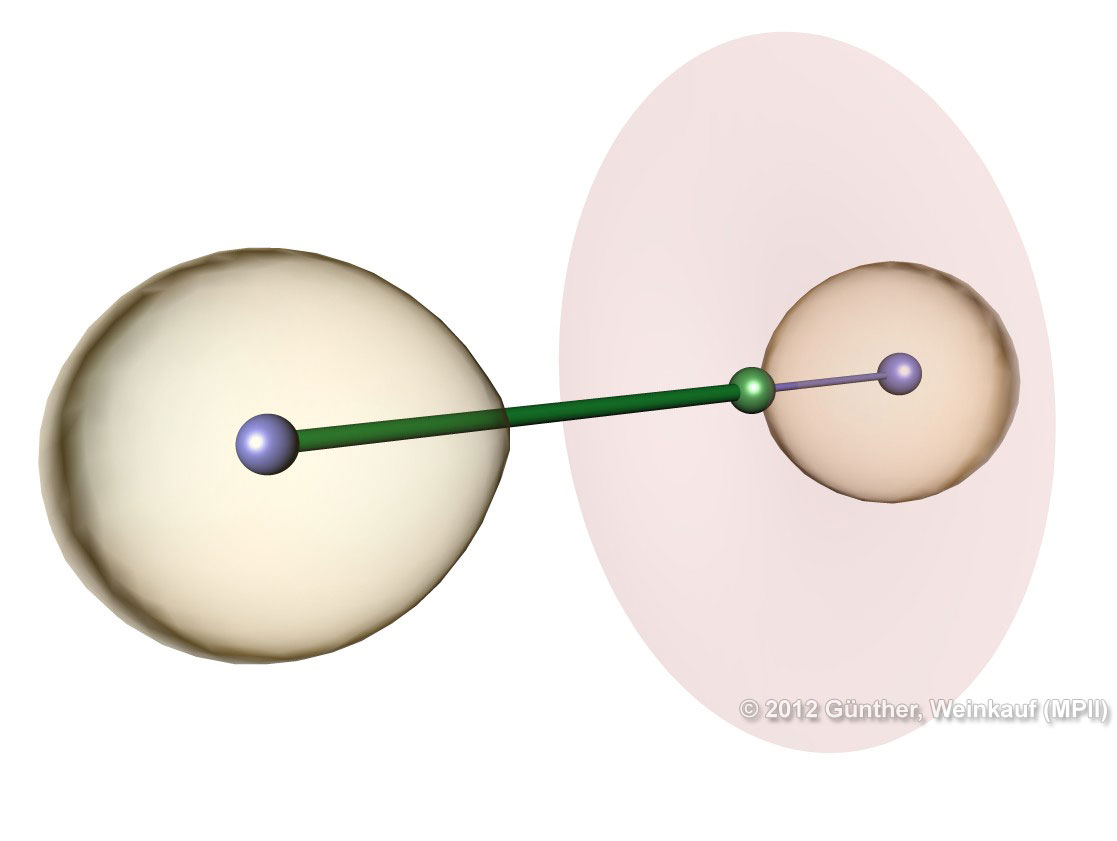

extensionLine_v2
extensionLine_v2

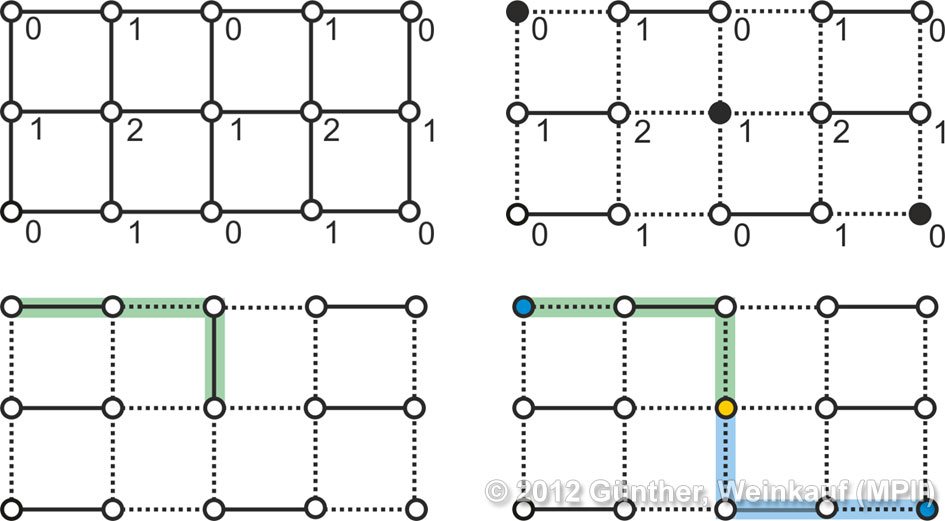

extremalStructures
extremalStructures

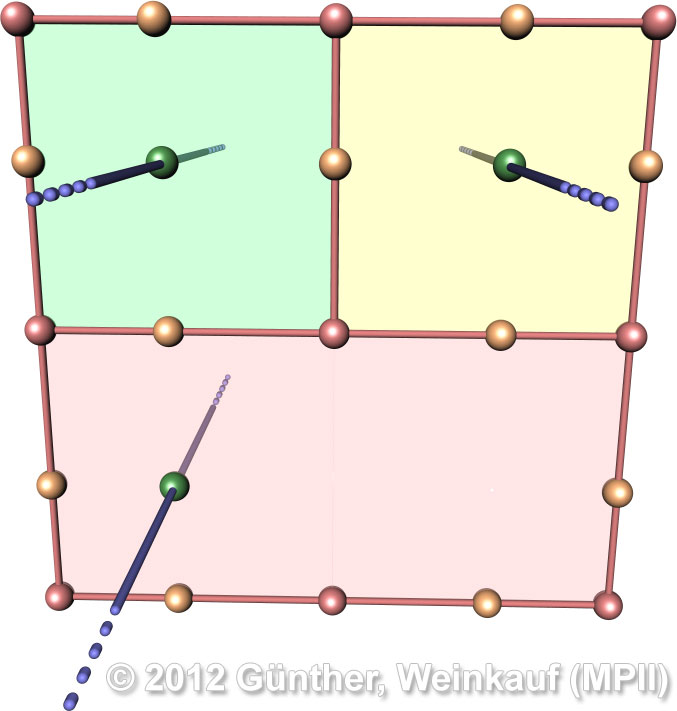

increaseAreaAfter_v2
increaseAreaAfter_v2
increaseAreaBefore_v2
increaseAreaBefore_v2

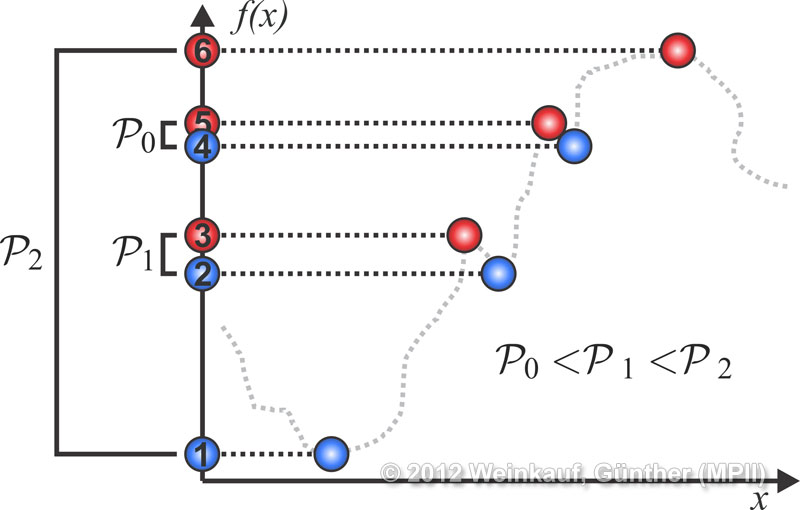

Persistence1D
Persistence1D

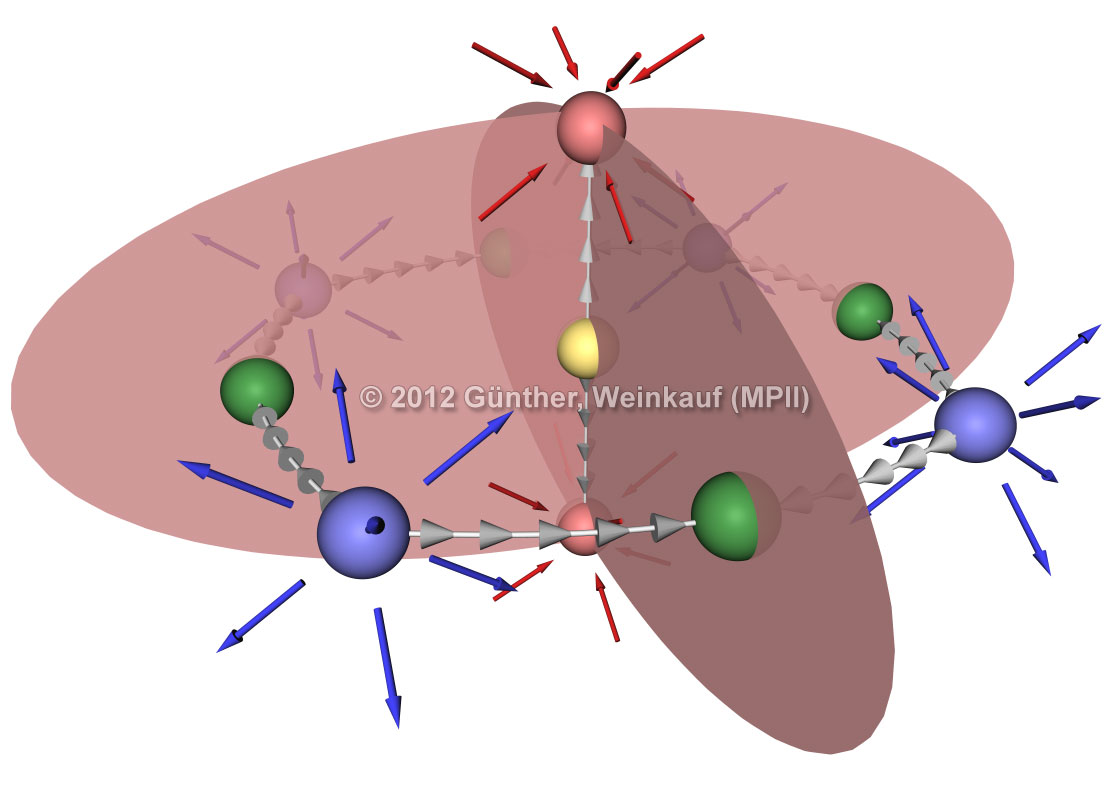

repellingSurface
repellingSurface

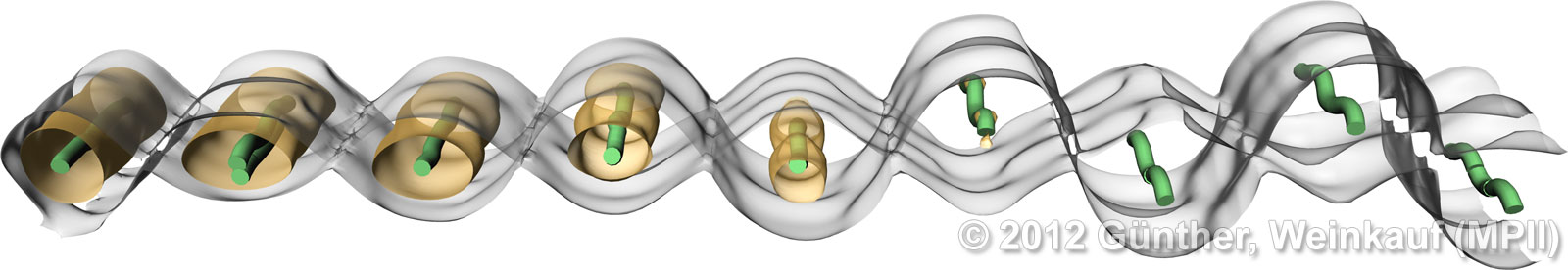

ridgeLines
ridgeLines

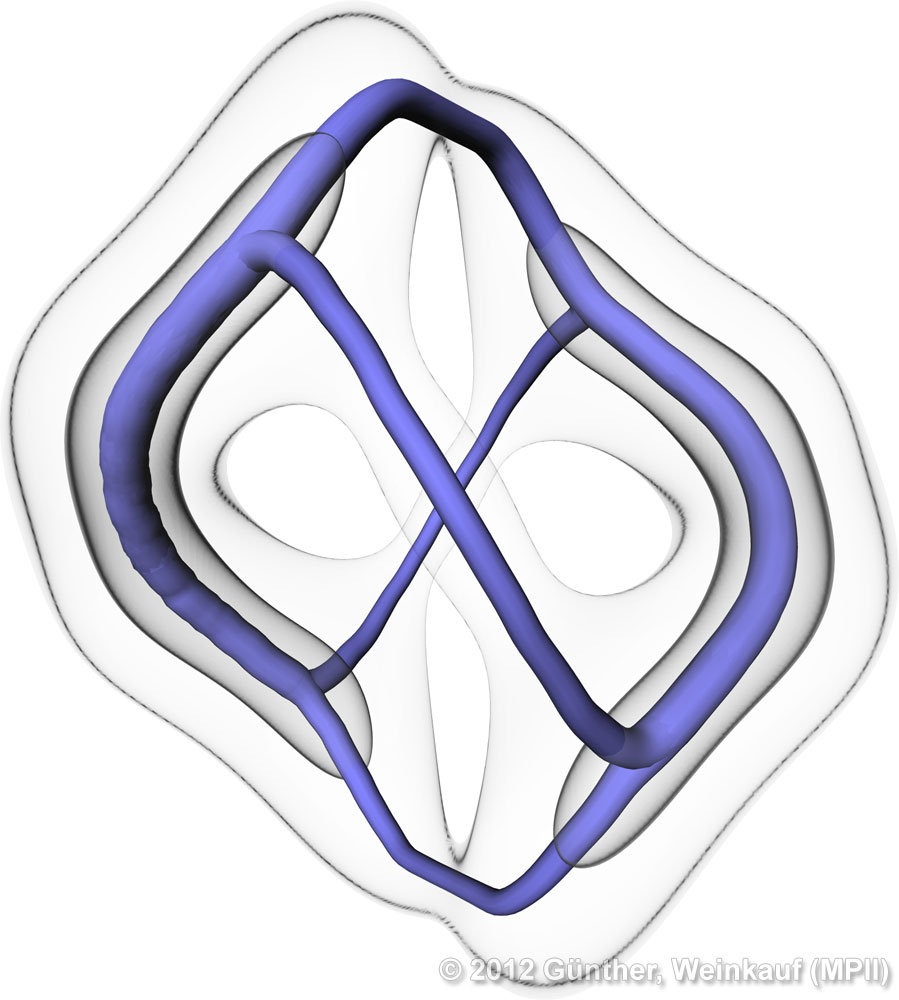

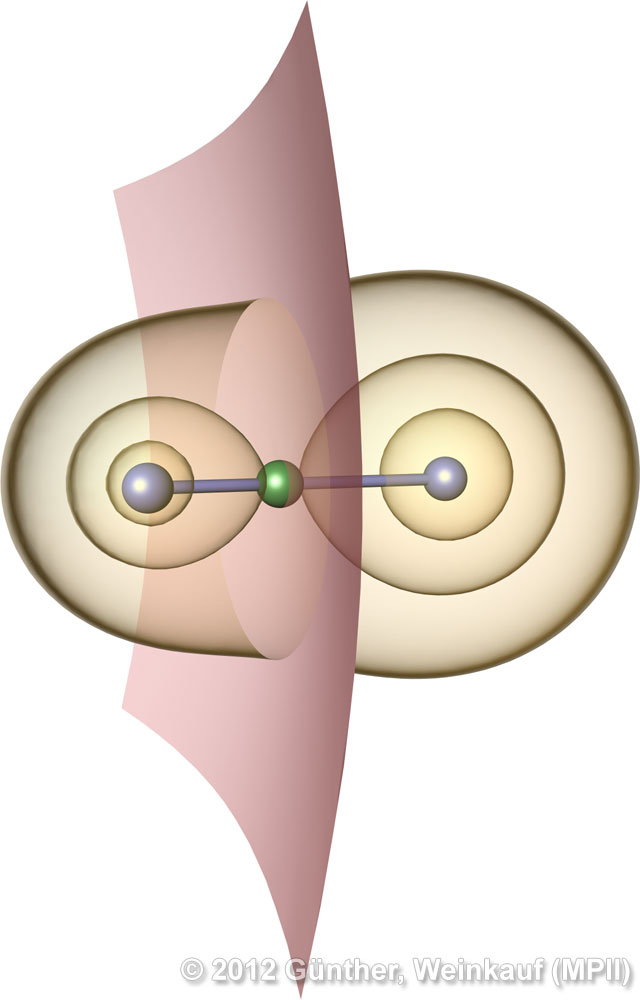

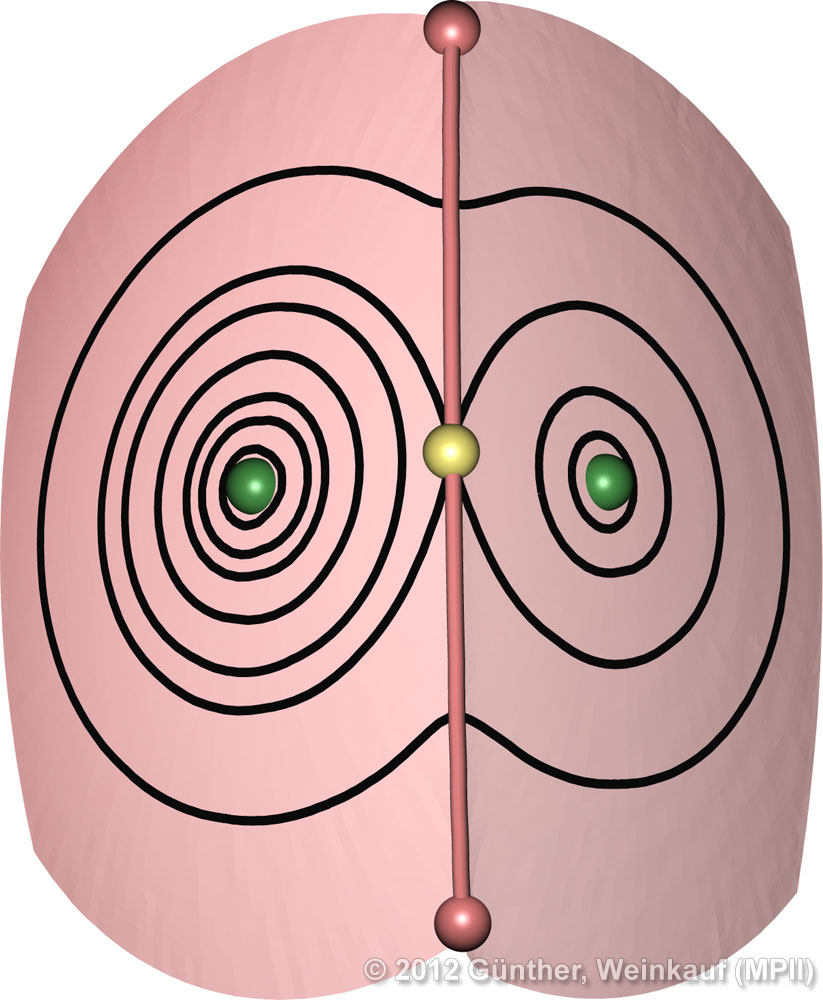

sepLineImportance
