An Edge-Bundling Layout for Interactive Parallel Coordinates Corresponding Publication
Logo Parallel Coordinates is an often used visualization method for multidimensional data sets. Its main challenges for large data sets are visual clutter and overplotting which hamper the recognition of patterns in the data. We present an edge-bundling method using density-based clustering for each dimension. This reduces clutter and provides a faster overview of clusters and trends. Moreover, it allows rendering the clustered lines using polygons, decreasing rendering time remarkably. In addition, we design interactions to support multidimensional clustering with this method. A user study shows improvements over the classic parallel coordinates plot in two user tasks: correlation estimation and subset tracing. G. Palmas, M. Bachynskyi, A. Oulasvirta, H.-P. Seidel, T. Weinkauf
An Edge-Bundling Layout for Interactive Parallel Coordinates
Proc. IEEE PacificVis, Yokohama, Japan, March 4 - 7, 2014
[slideshow]

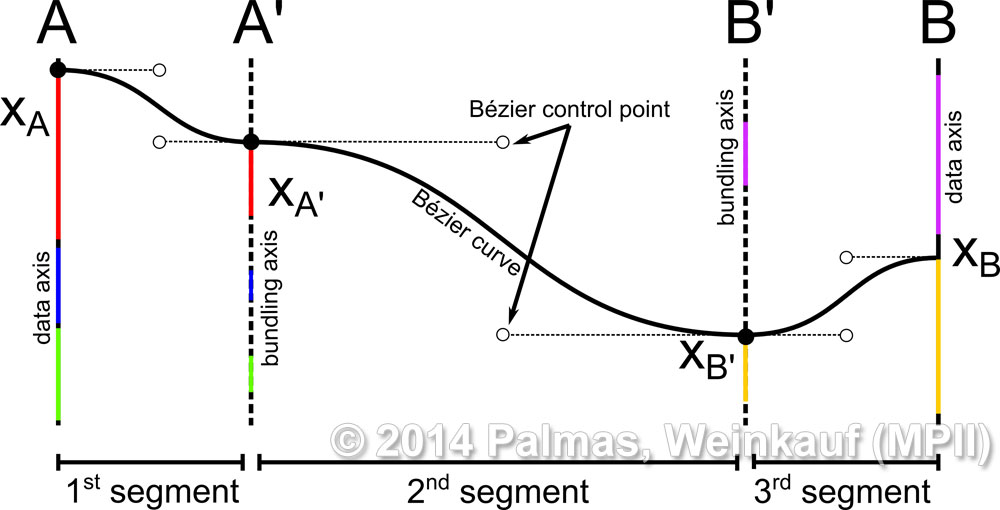

bezier_segm
bezier_segm

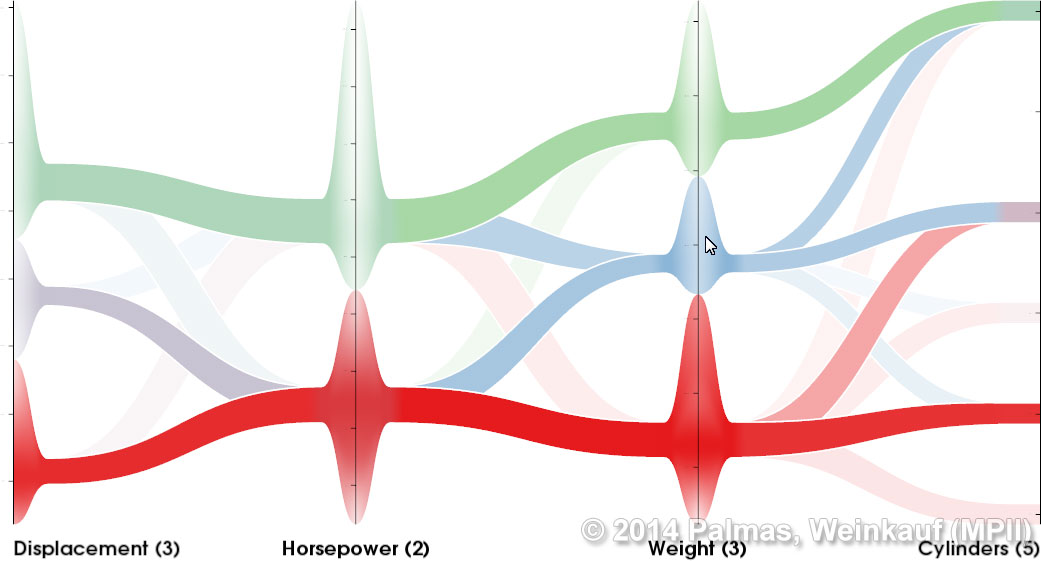

CarsInteractions_AxisSelection
CarsInteractions_AxisSelection

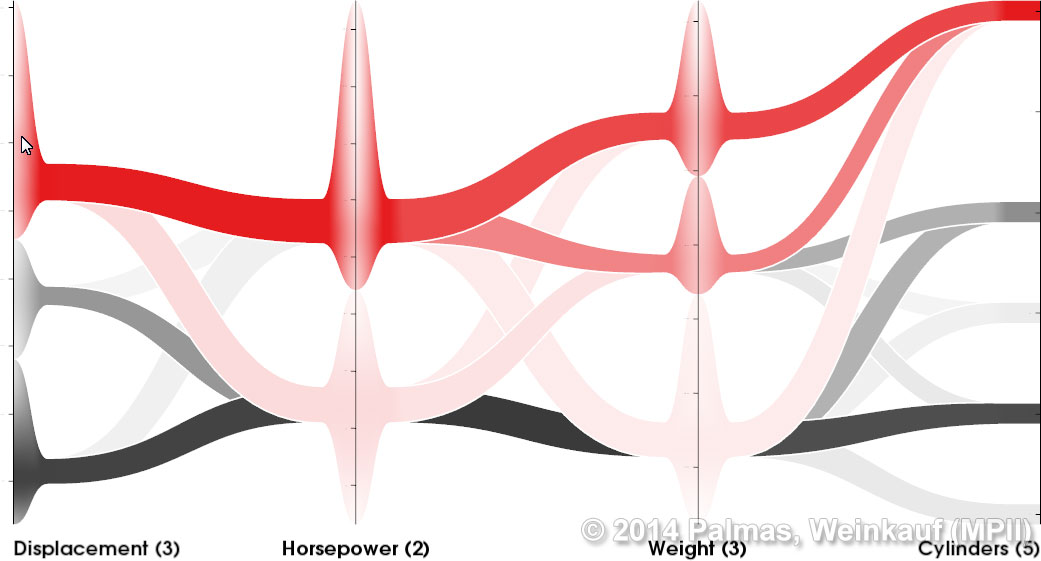

CarsInteractions_QuickSelection
CarsInteractions_QuickSelection

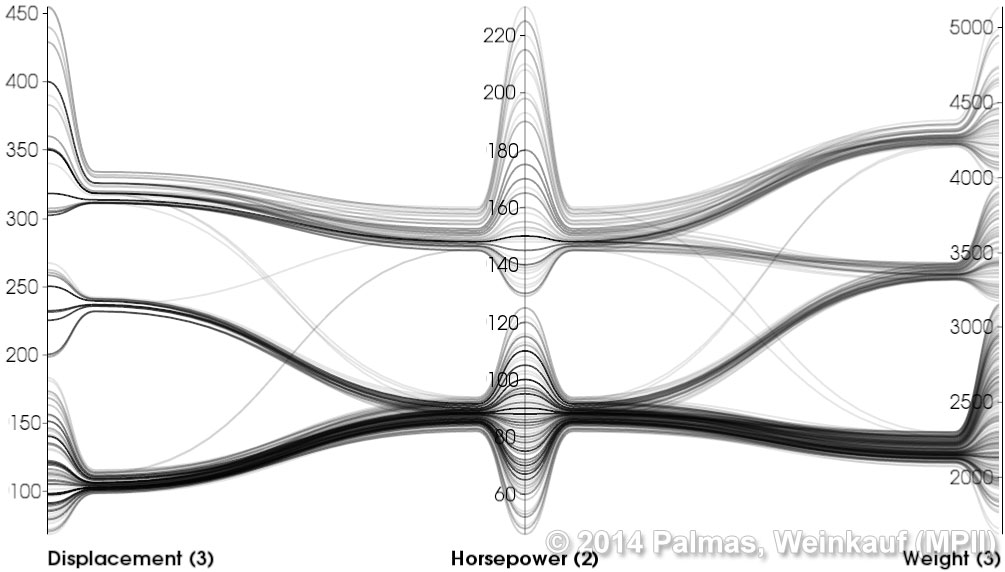

CarsSimple_Bundles
CarsSimple_Bundles

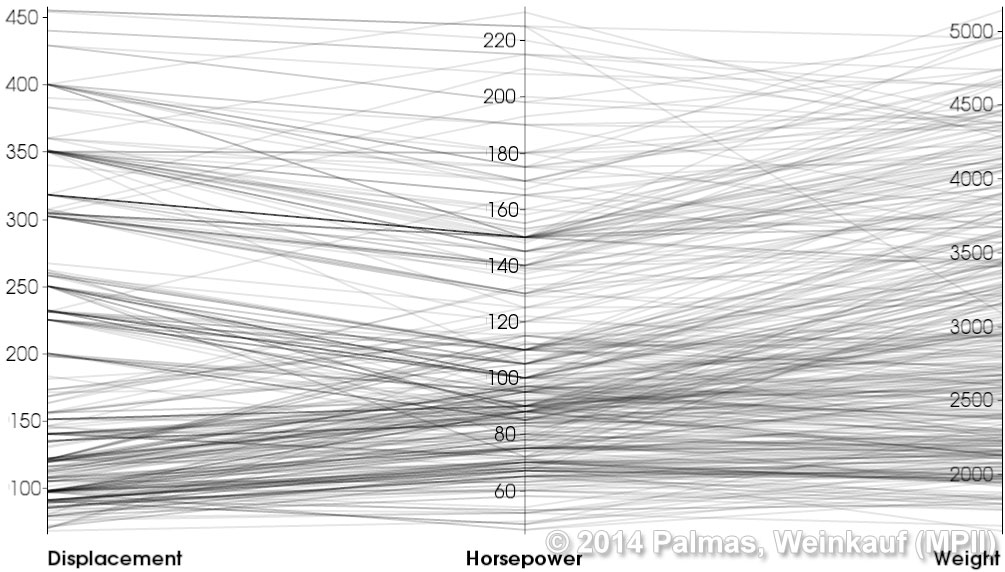

CarsSimple_Classic
CarsSimple_Classic

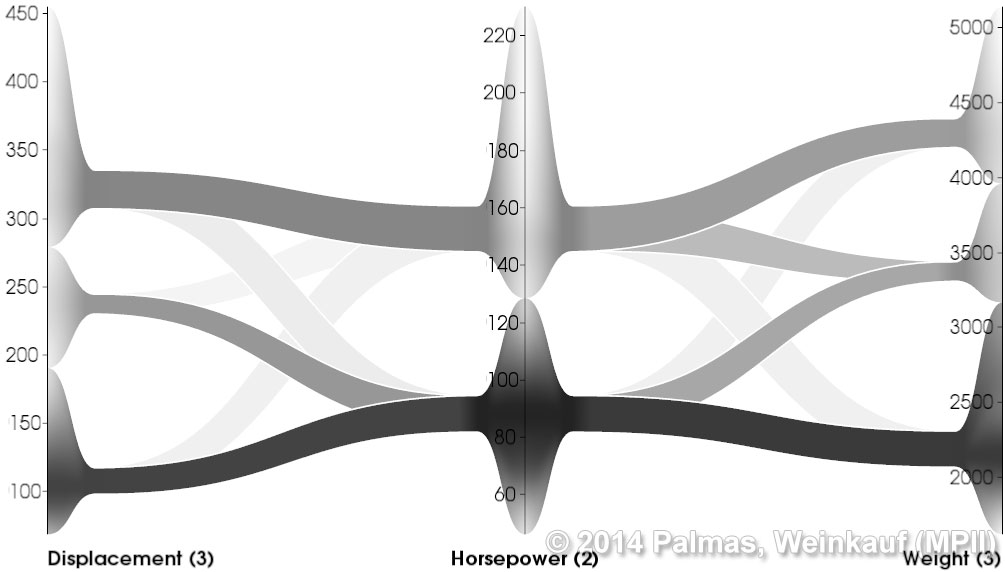

CarsSimple_Strips
CarsSimple_Strips

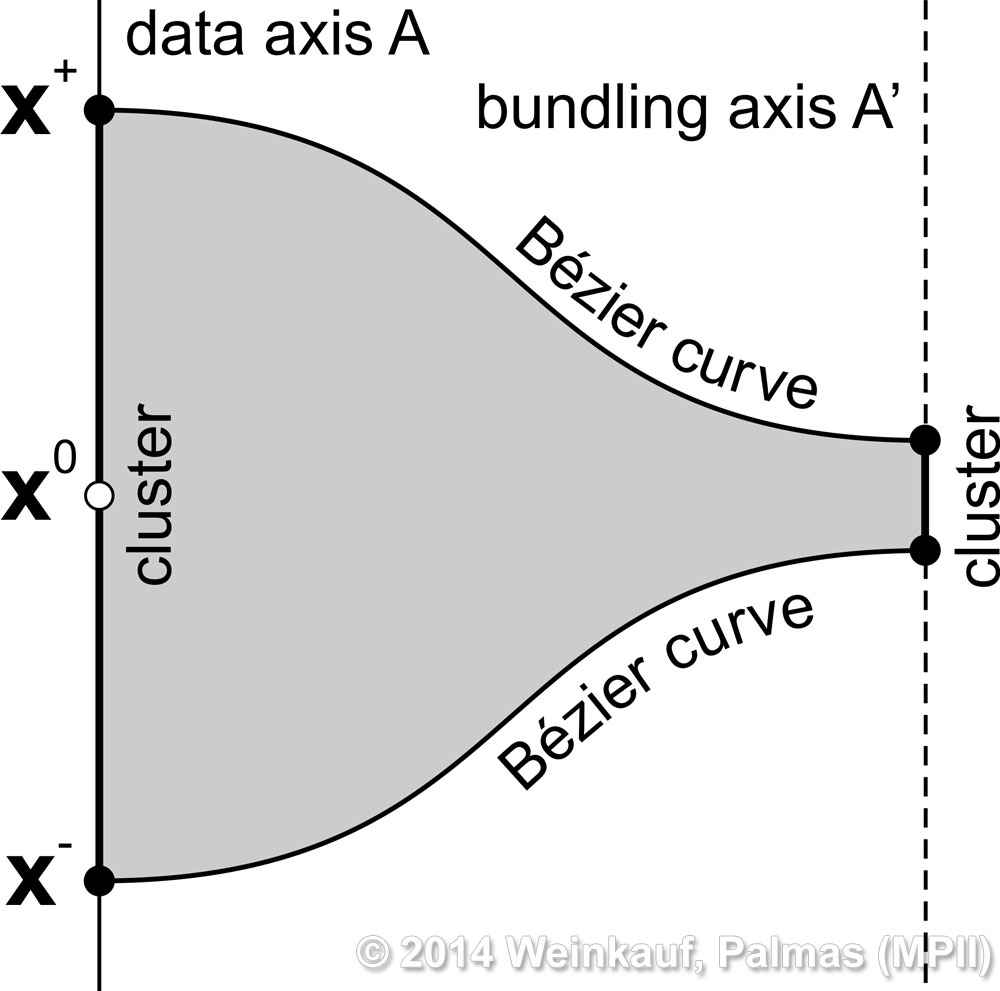

ClusterStripConstruction
ClusterStripConstruction

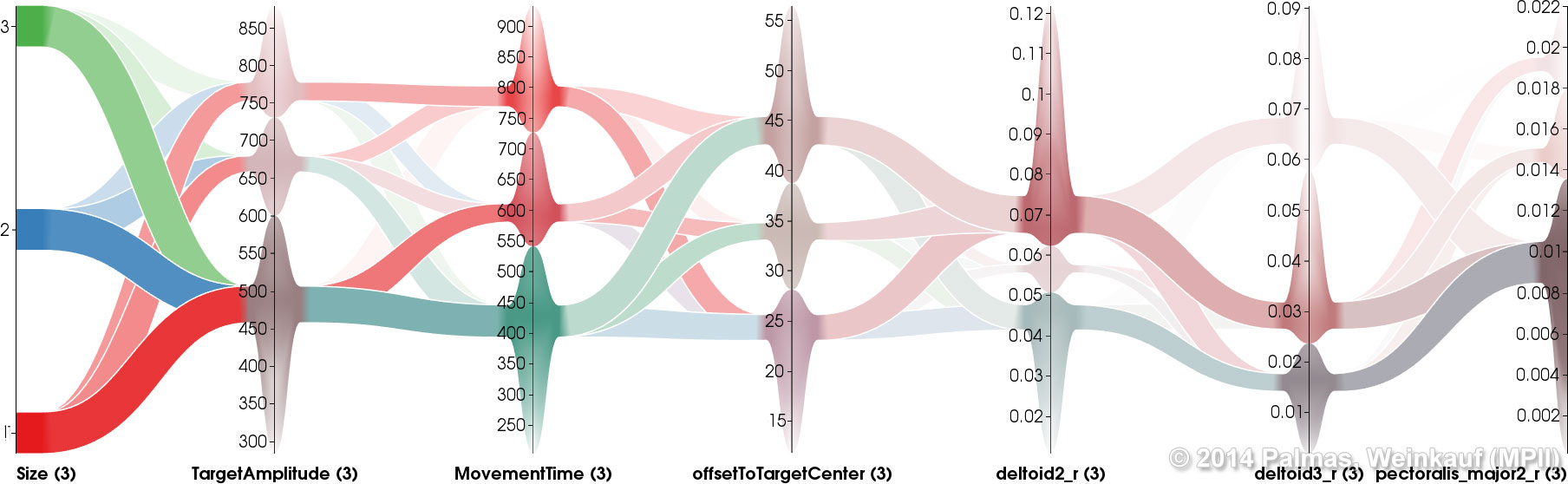

FrameShortNames-sizesel-bundle
FrameShortNames-sizesel-bundle

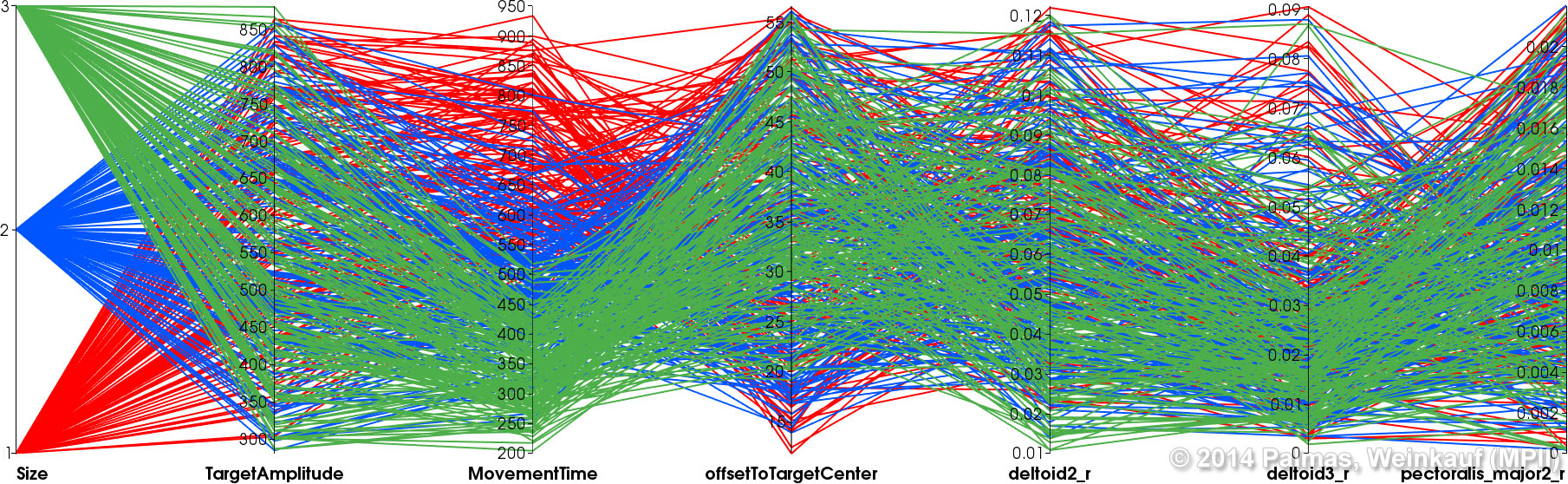

FrameShortNames-sizesel-classic
FrameShortNames-sizesel-classic

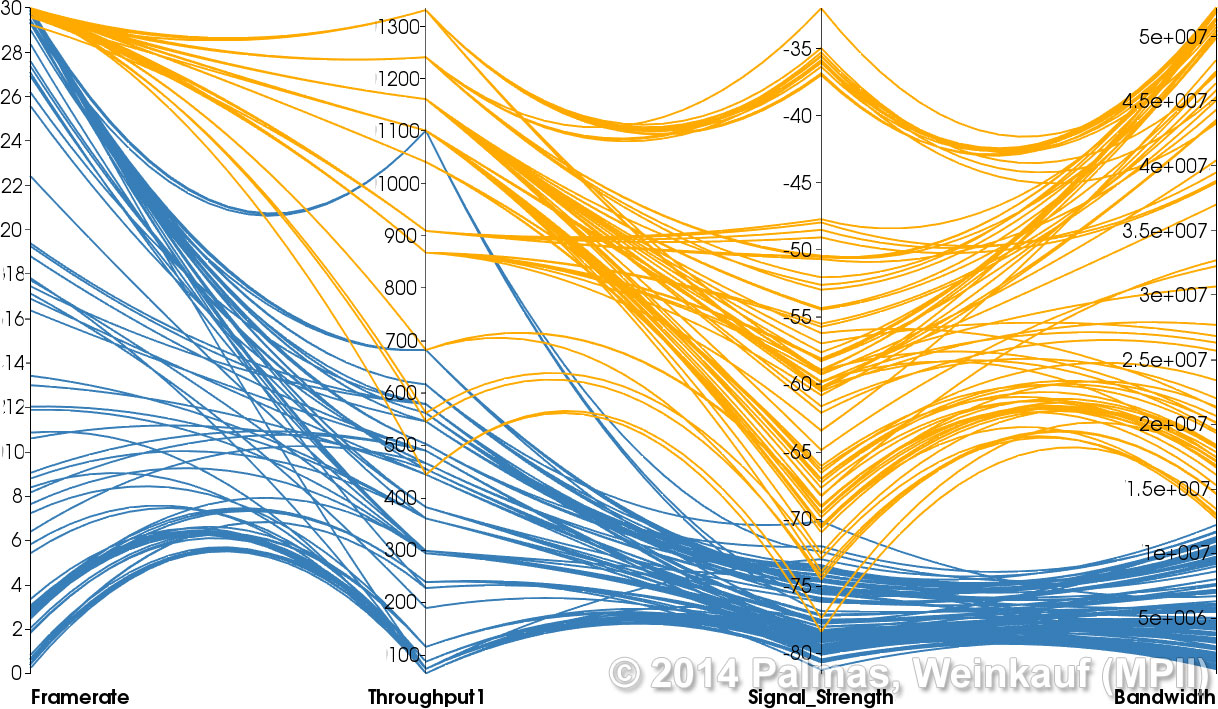

IllustrativePC_Netperf_2Clusters
IllustrativePC_Netperf_2Clusters

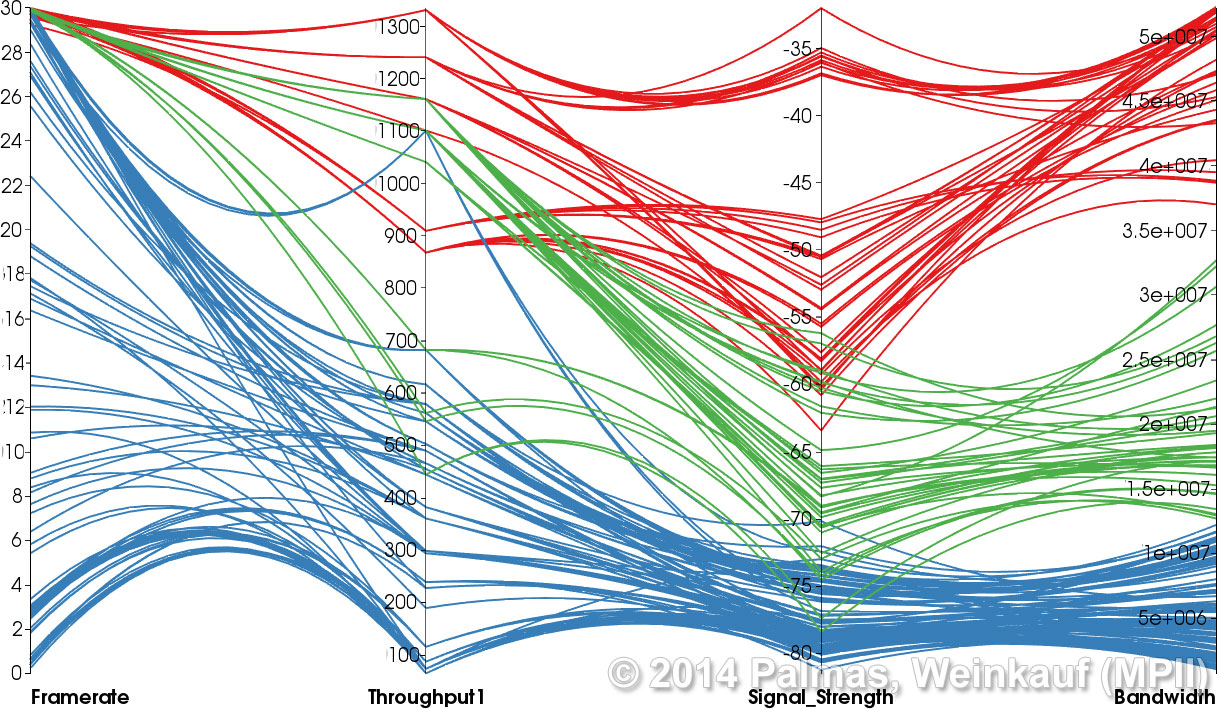

IllustrativePC_Netperf_3Clusters
IllustrativePC_Netperf_3Clusters

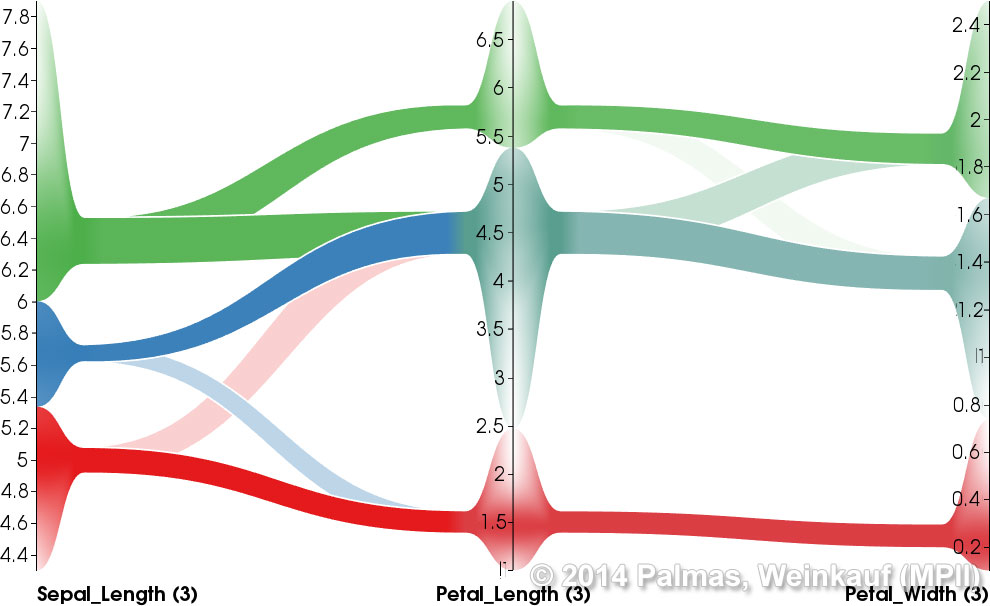

iris-seplength-petlength-petwidth-bundle-selsepl
iris-seplength-petlength-petwidth-bundle-selsepl

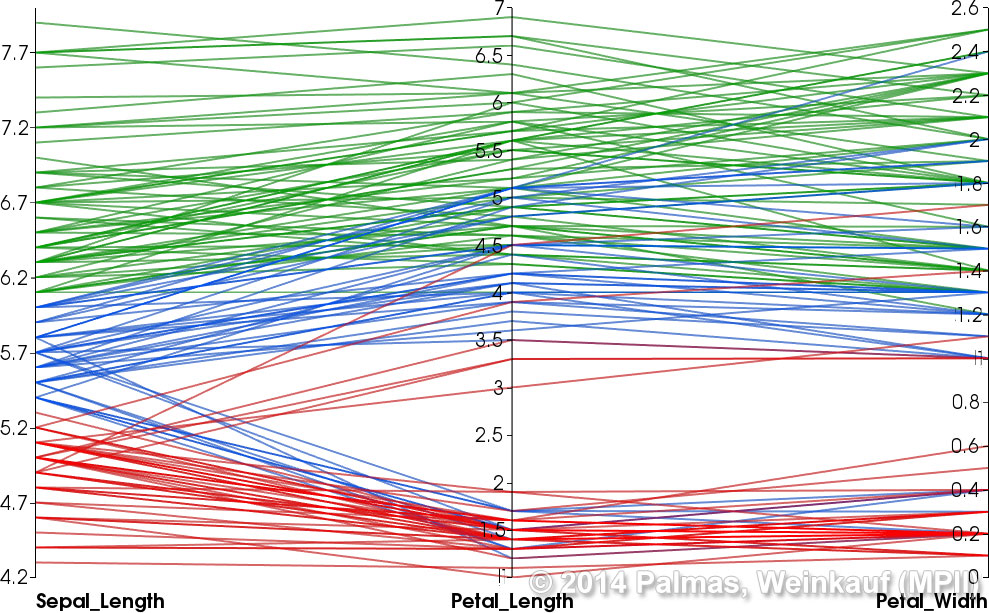

iris-seplength-petlength-petwidth-classic-selsepl
iris-seplength-petlength-petwidth-classic-selsepl

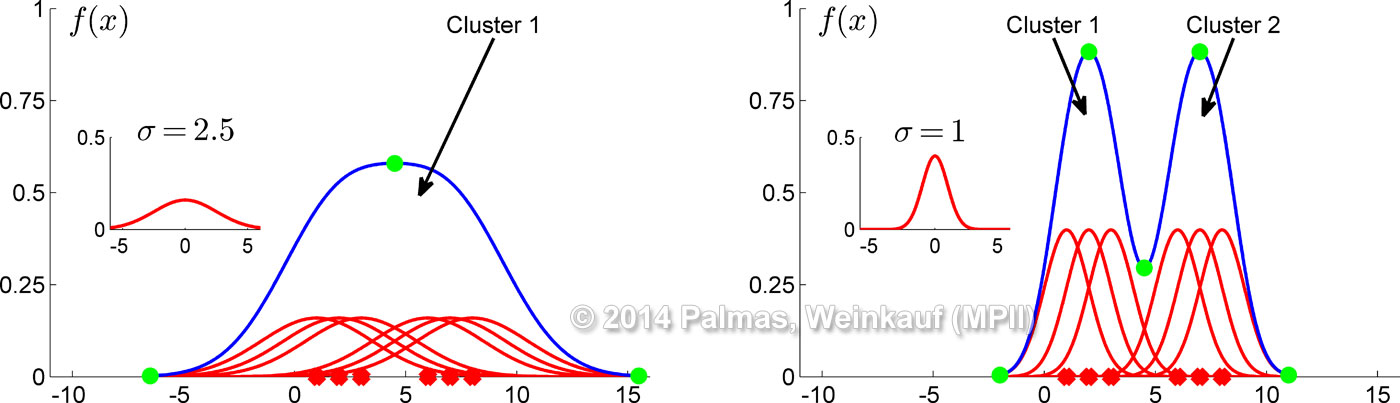

KDE
KDE

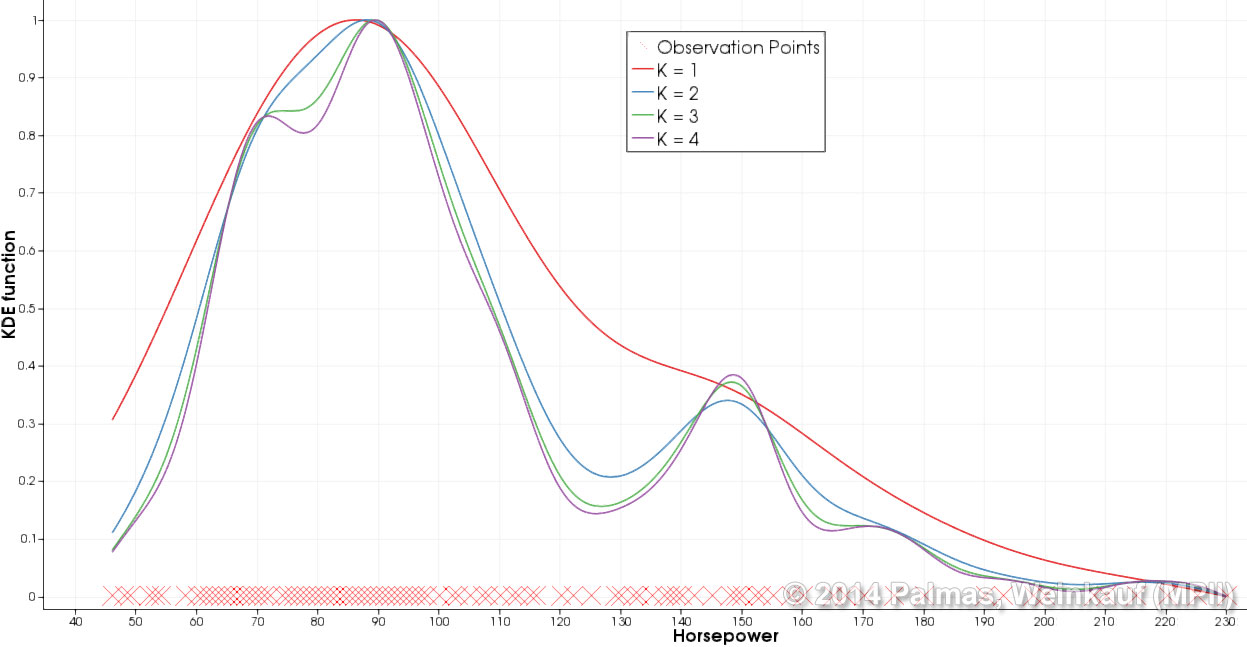

KDE_CarsHorsepower
KDE_CarsHorsepower

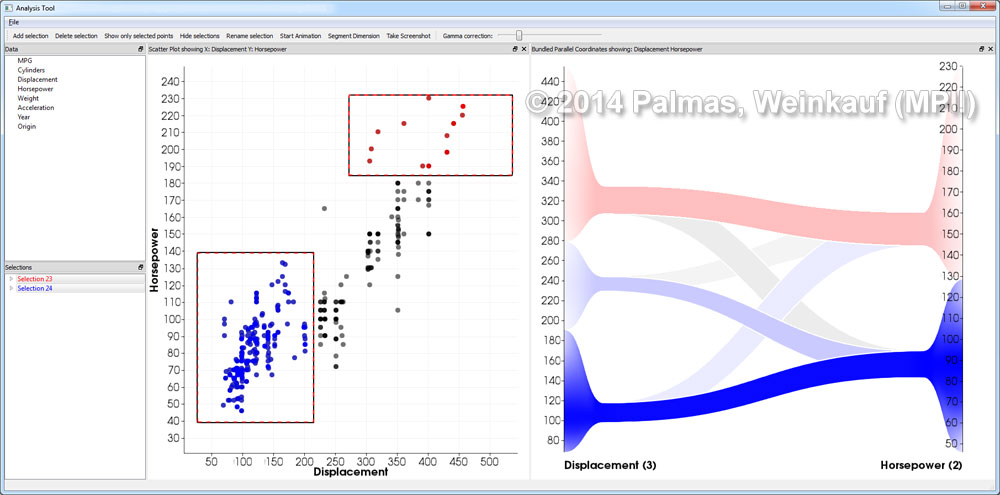

LinkingBrushing
LinkingBrushing

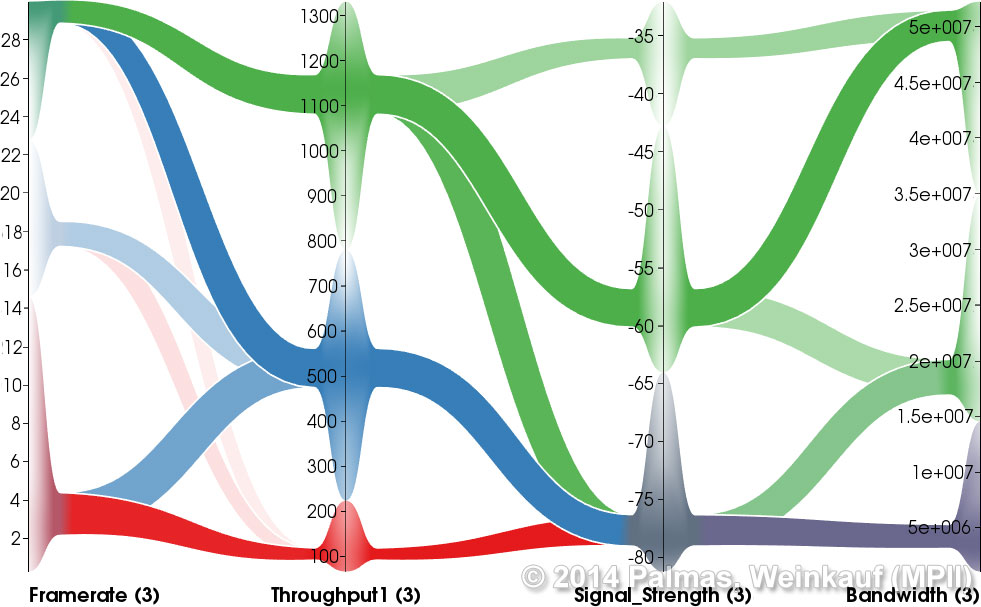

netperf-sigstr-bw-tp-ft-bundle-tpsel
netperf-sigstr-bw-tp-ft-bundle-tpsel
netperf-sigstr-bw-tp-ft-classic-tpsel
netperf-sigstr-bw-tp-ft-classic-tpsel

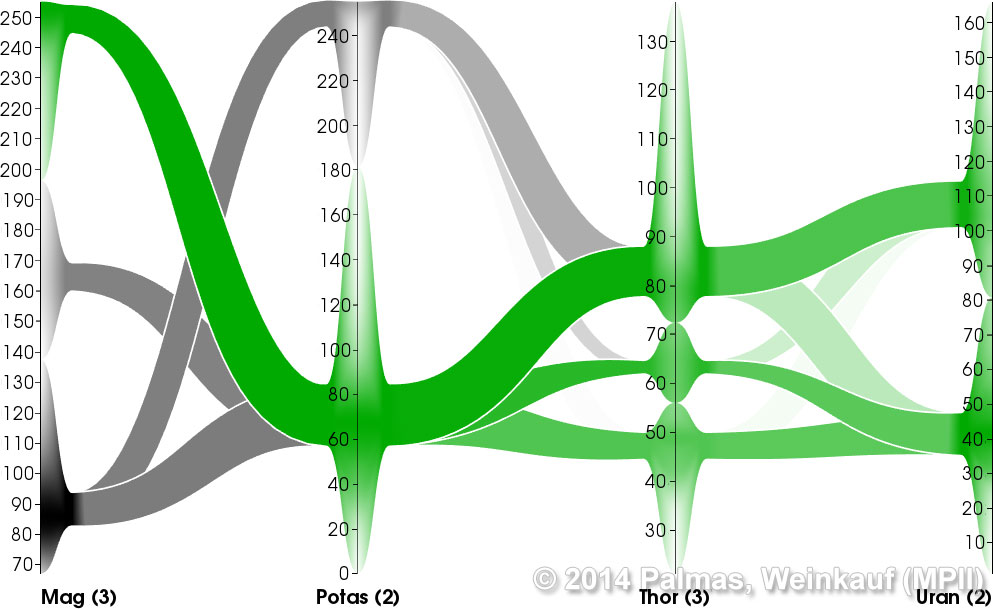

out5d-mag-potas-thor-uran-bundled-highmag
out5d-mag-potas-thor-uran-bundled-highmag

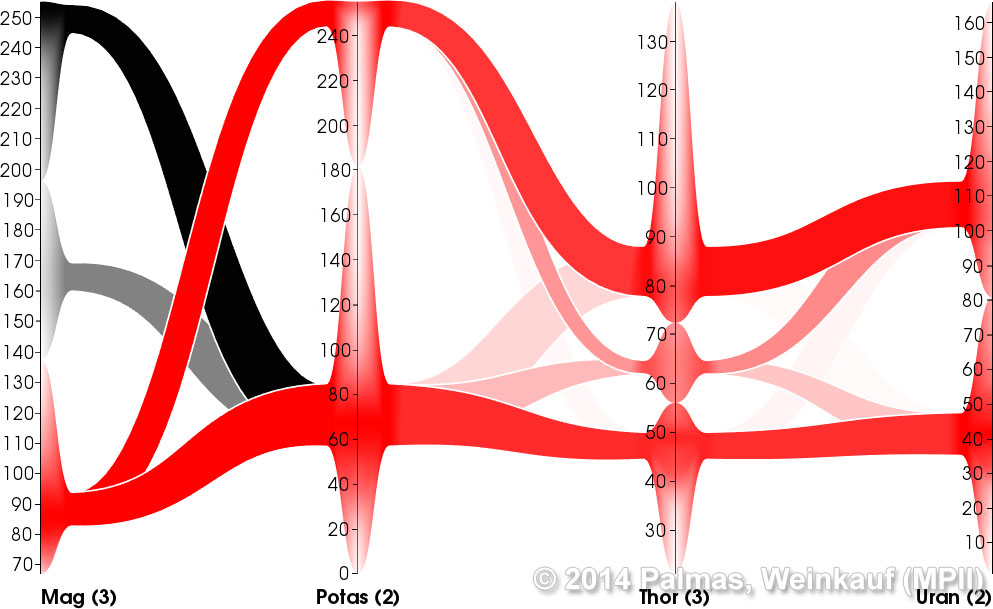

out5d-mag-potas-thor-uran-bundled-lowmag
out5d-mag-potas-thor-uran-bundled-lowmag

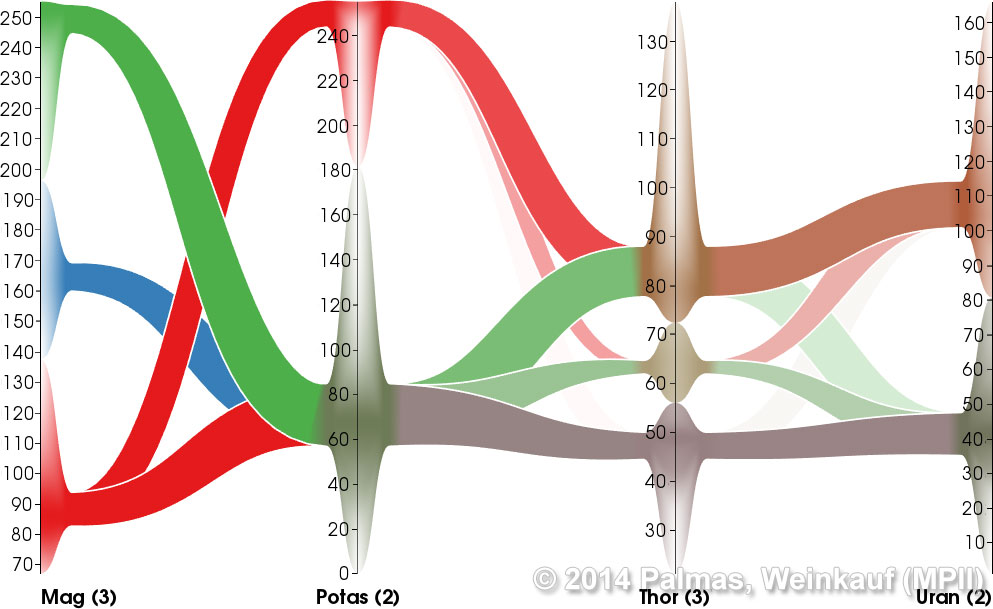

out5d-mag-potas-thor-uran-bundled-magsel
out5d-mag-potas-thor-uran-bundled-magsel

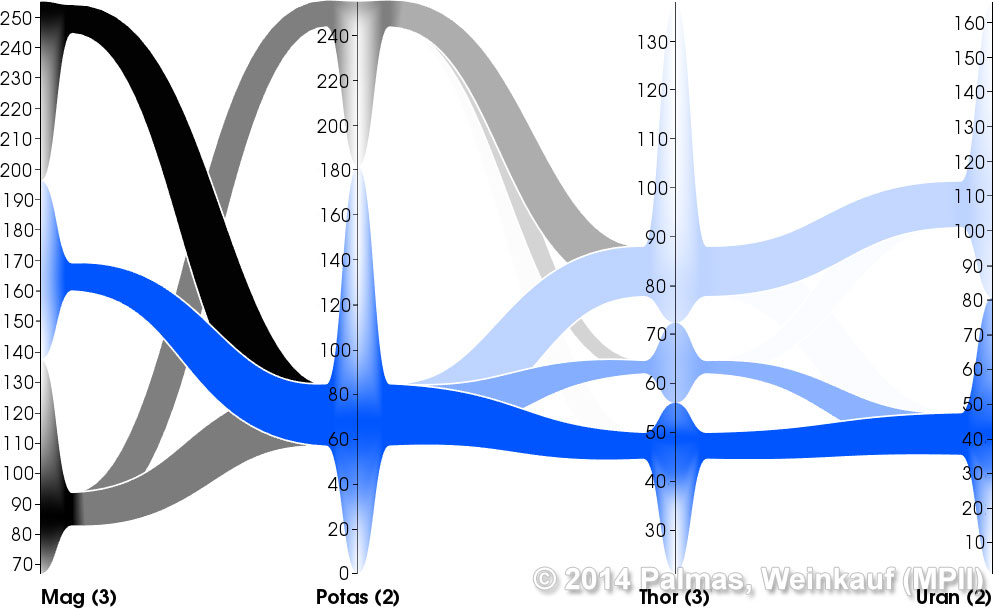

out5d-mag-potas-thor-uran-bundled-medmag
out5d-mag-potas-thor-uran-bundled-medmag
out5d-mag-potas-thor-uran-bundled
out5d-mag-potas-thor-uran-bundled

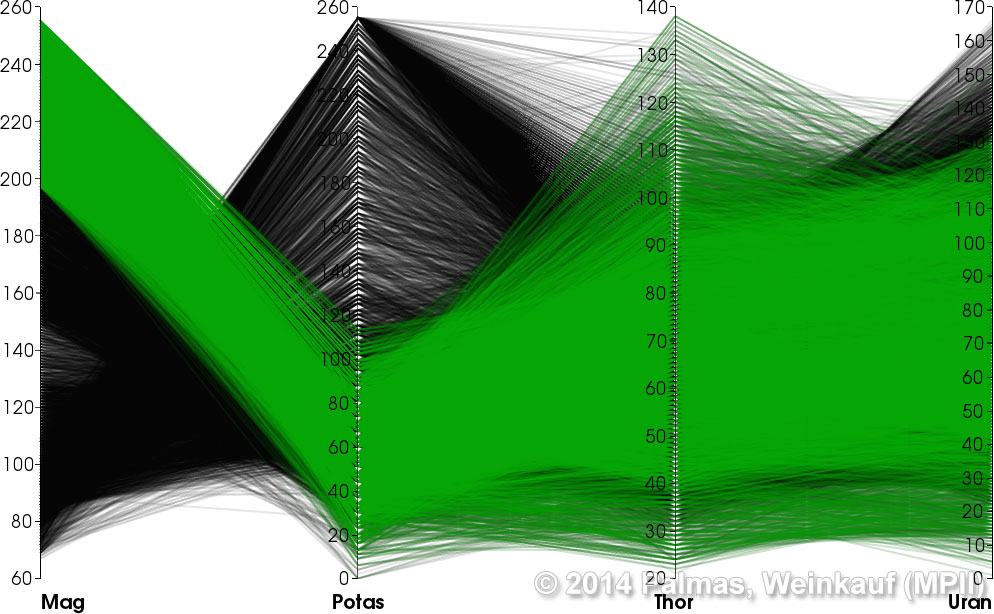

out5d-mag-potas-thor-uran-classic-highmag
out5d-mag-potas-thor-uran-classic-highmag

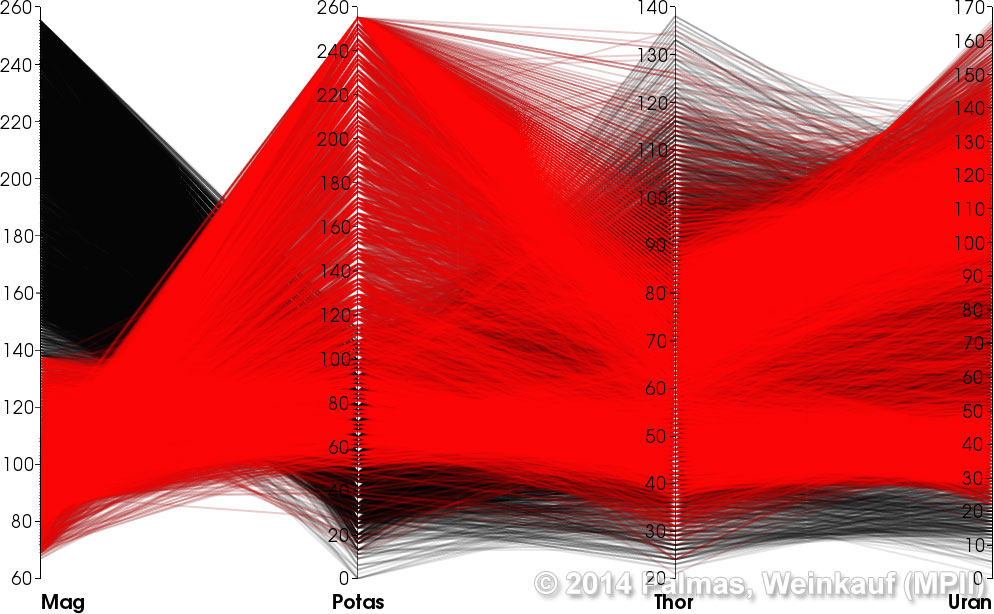

out5d-mag-potas-thor-uran-classic-lowmag
out5d-mag-potas-thor-uran-classic-lowmag

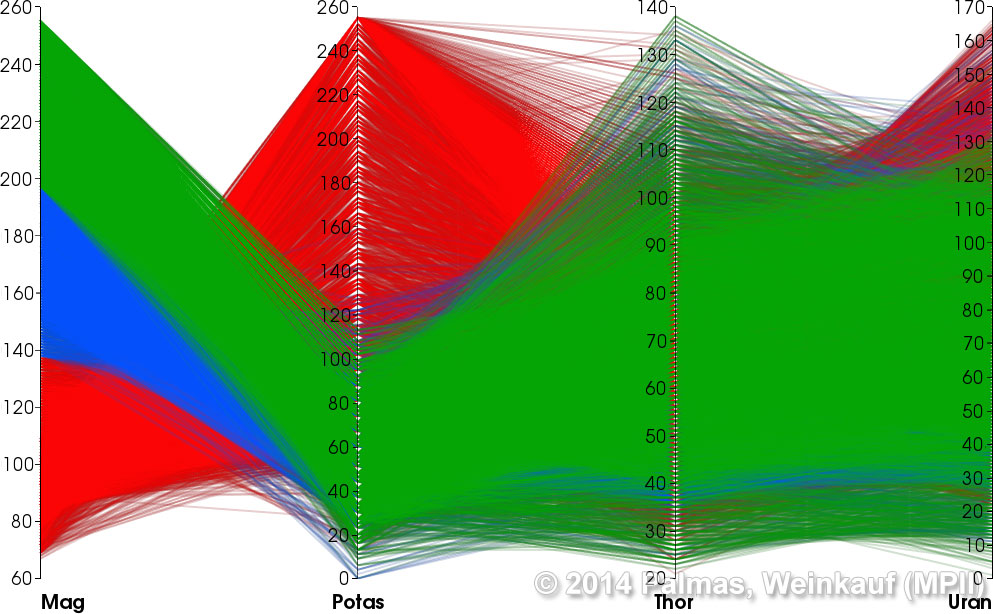

out5d-mag-potas-thor-uran-classic-magsel
out5d-mag-potas-thor-uran-classic-magsel

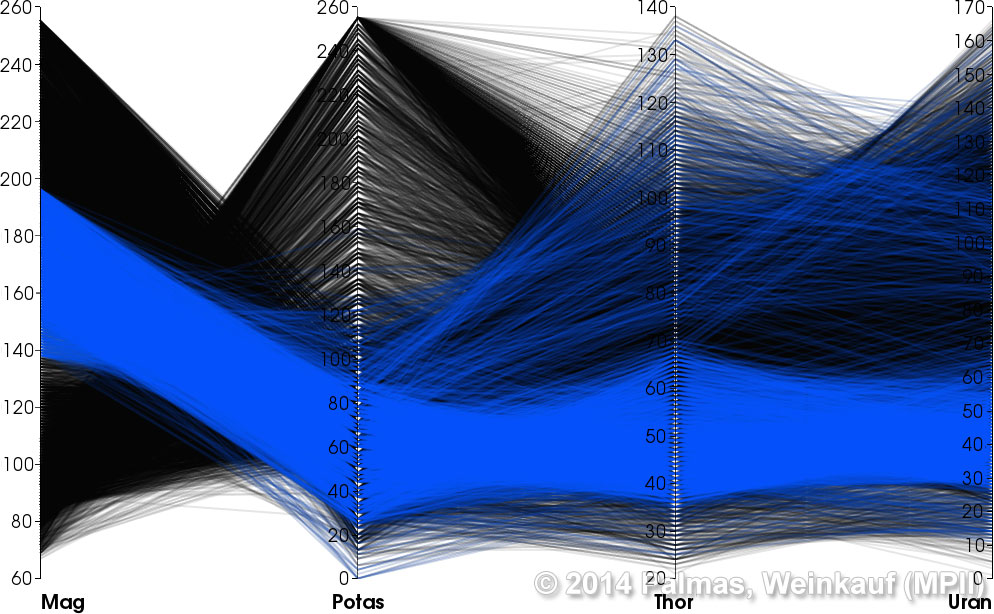

out5d-mag-potas-thor-uran-classic-medmag
out5d-mag-potas-thor-uran-classic-medmag

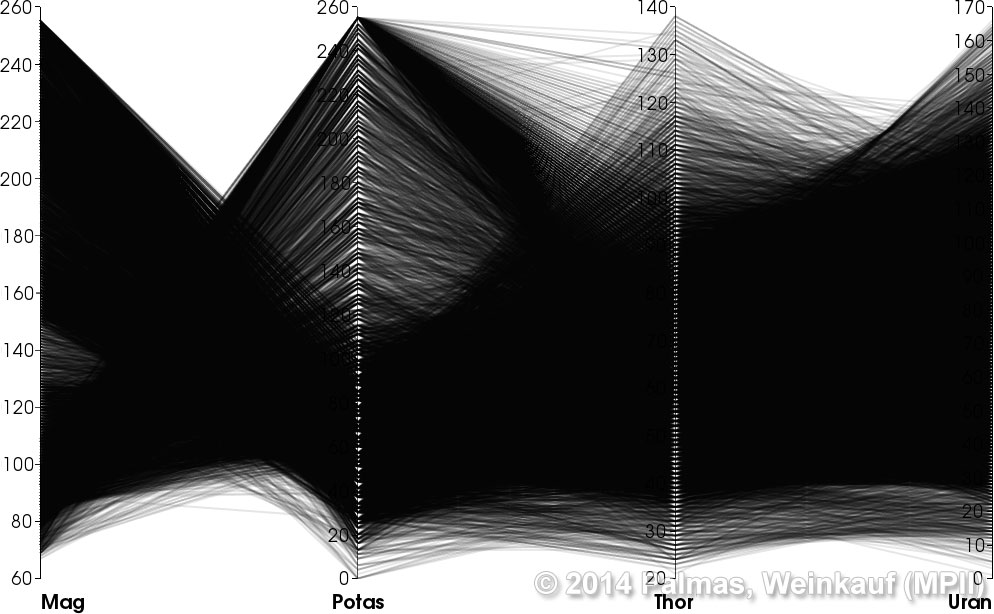

out5d-mag-potas-thor-uran-linesop25
out5d-mag-potas-thor-uran-linesop25

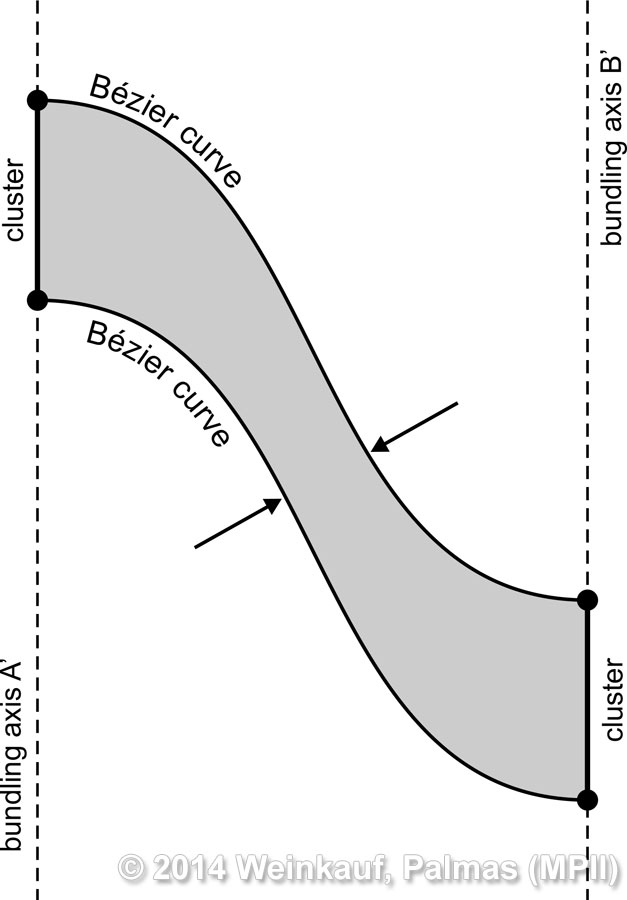

StripConstruction_BezierCurves
StripConstruction_BezierCurves

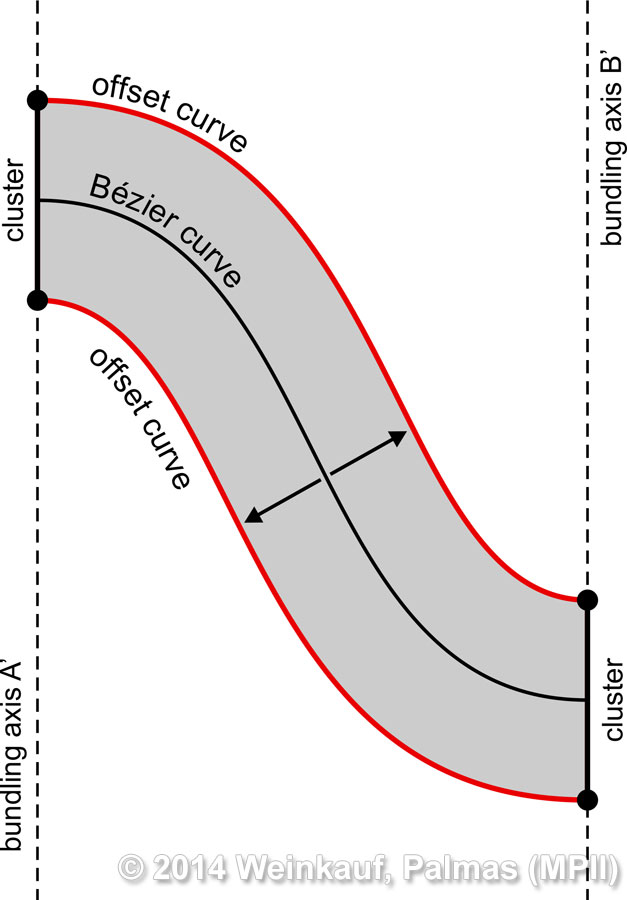

StripConstruction_OffsetCurves
StripConstruction_OffsetCurves

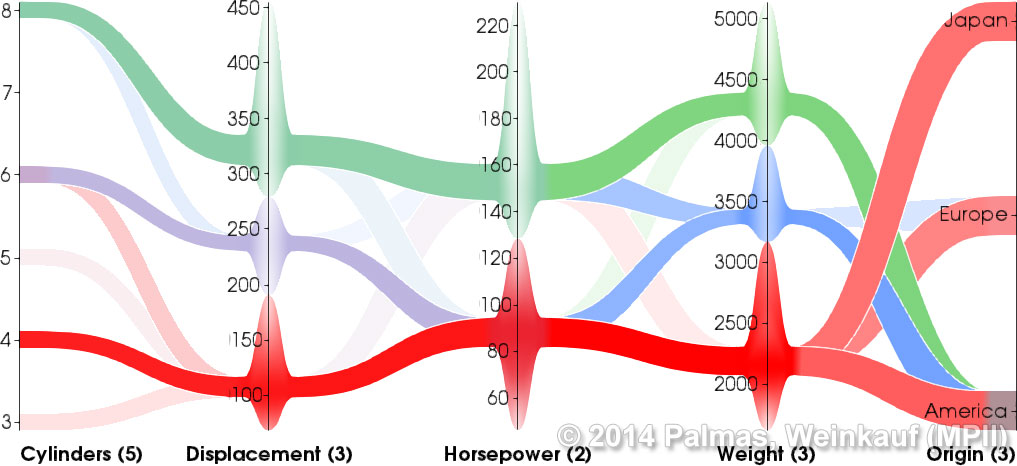

teaser-bundle
teaser-bundle

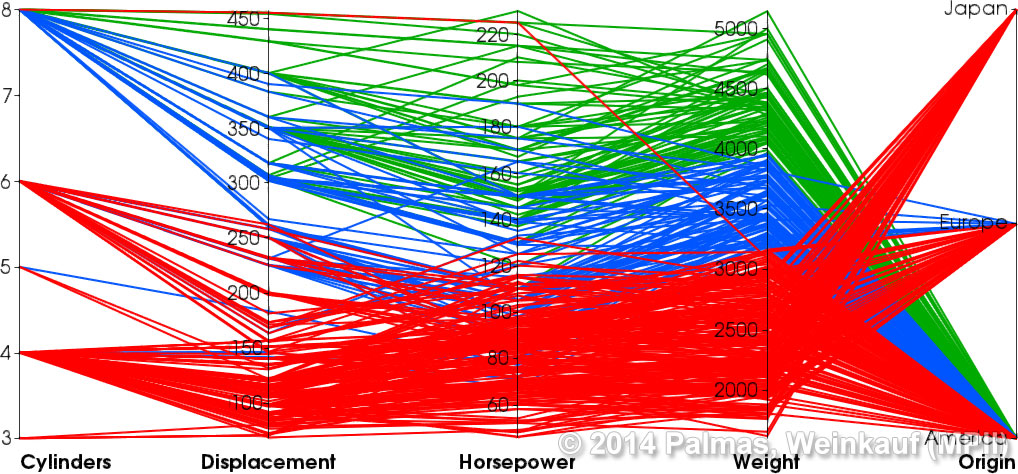

teaser-classic
teaser-classic

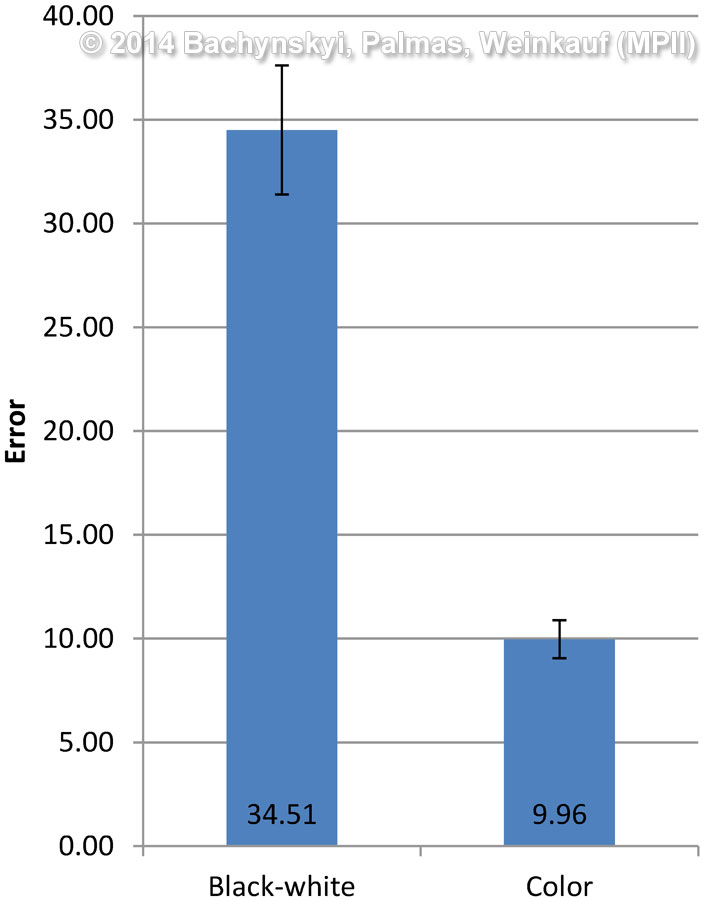

UserStudy_ColorPresence
UserStudy_ColorPresence

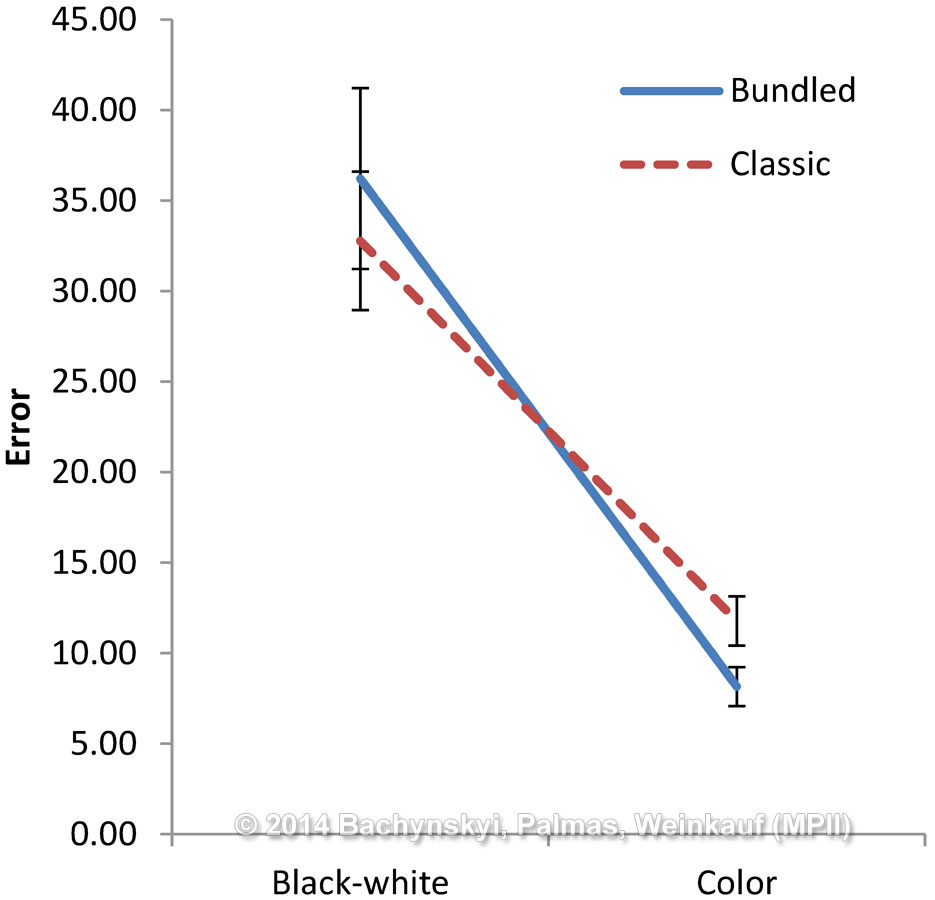

UserStudy_Interactions
UserStudy_Interactions

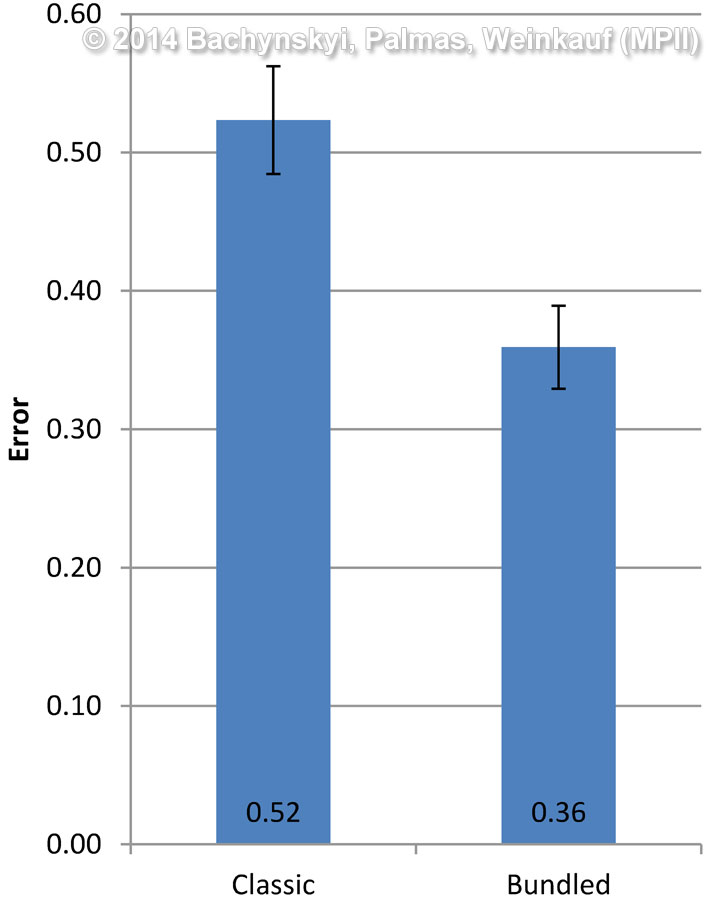

UserStudy_Task1
UserStudy_Task1

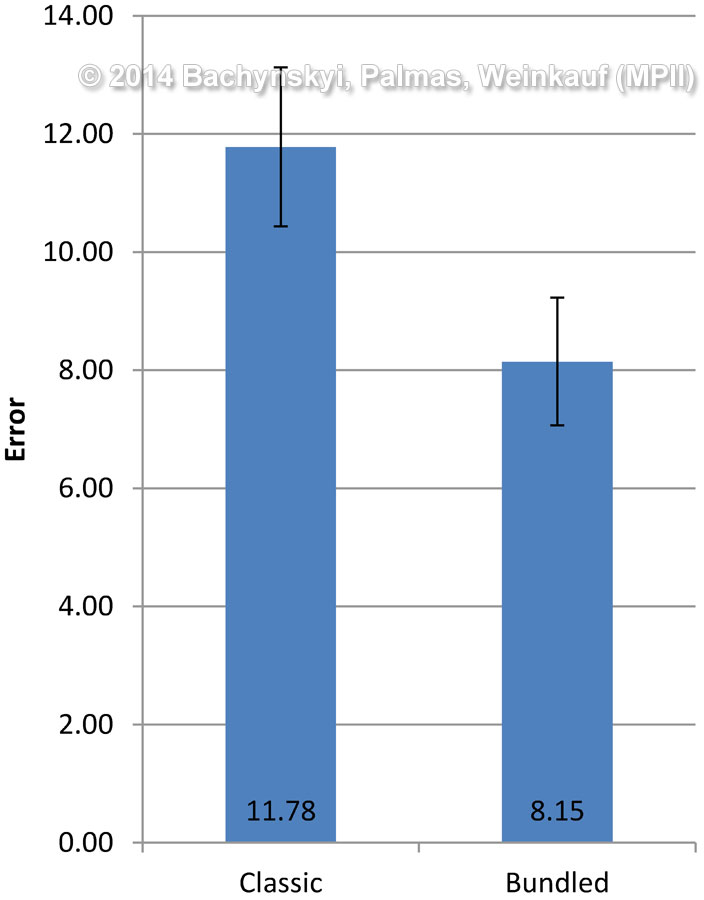

UserStudy_Task2_color
UserStudy_Task2_color

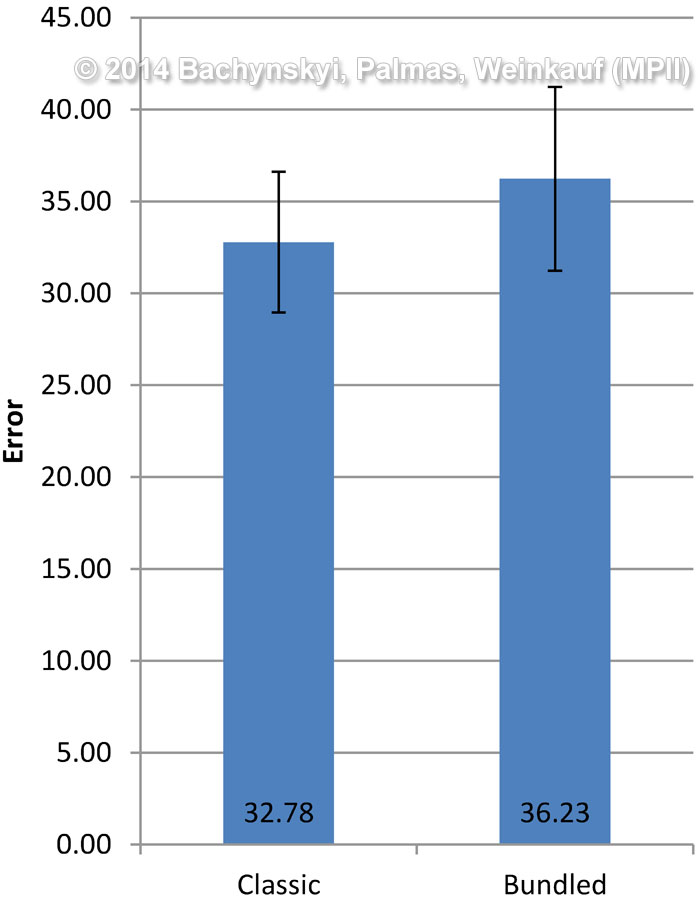

UserStudy_Task2_nocolor
