Smoke Surfaces: An Interactive Flow Visualization Technique Inspired by Real-World Flow Experiments Corresponding Publication
Logo Smoke rendering is a standard technique for flow visualization. Most approaches are based on a volumetric, particle based, or image based representation of the smoke. This paper introduces an alternative representation of smoke structures: as semi-transparent streak surfaces. In order to make streak surface integration fast enough for interactive applications, we avoid expensive adaptive retriangulations by coupling the opacity of the triangles to their shapes. This way, the surface shows a smoke-like look even in rather turbulent areas. Furthermore, we show modifications of the approach to mimic smoke nozzles, wool tufts, and time surfaces. The technique is applied to a number of test data sets. W. von Funck, T. Weinkauf, H. Theisel, H.-P. Seidel
Smoke Surfaces: An Interactive Flow Visualization Technique Inspired by Real-World Flow Experiments
IEEE Transactions on Visualization and Computer Graphics (Proceedings Visualization 2008) 14(6), November - December 2008
[slideshow]

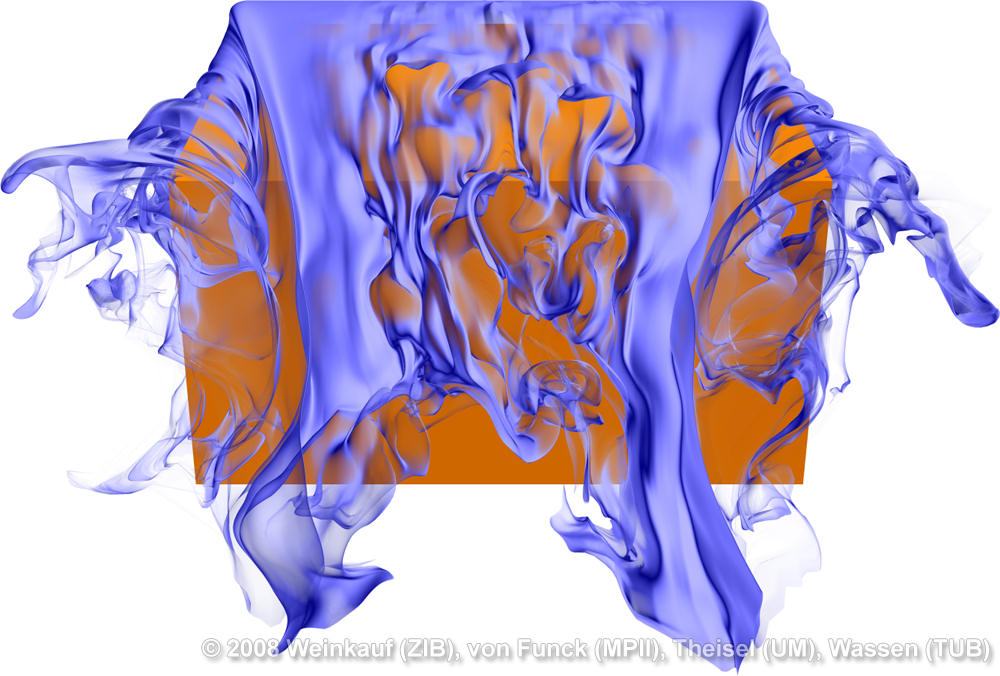

The smoke visualization of the flow around the Ahmed body reveals the strong vortices created at the corners of the slant as well as the turbulence in the middle of the slant. Cover image of Vis08 Proceedings.
The smoke visualization of the flow around the Ahmed body reveals the strong vortices created at the corners of the slant as well as the turbulence in the middle of the slant. Cover image of Vis08 Proceedings.

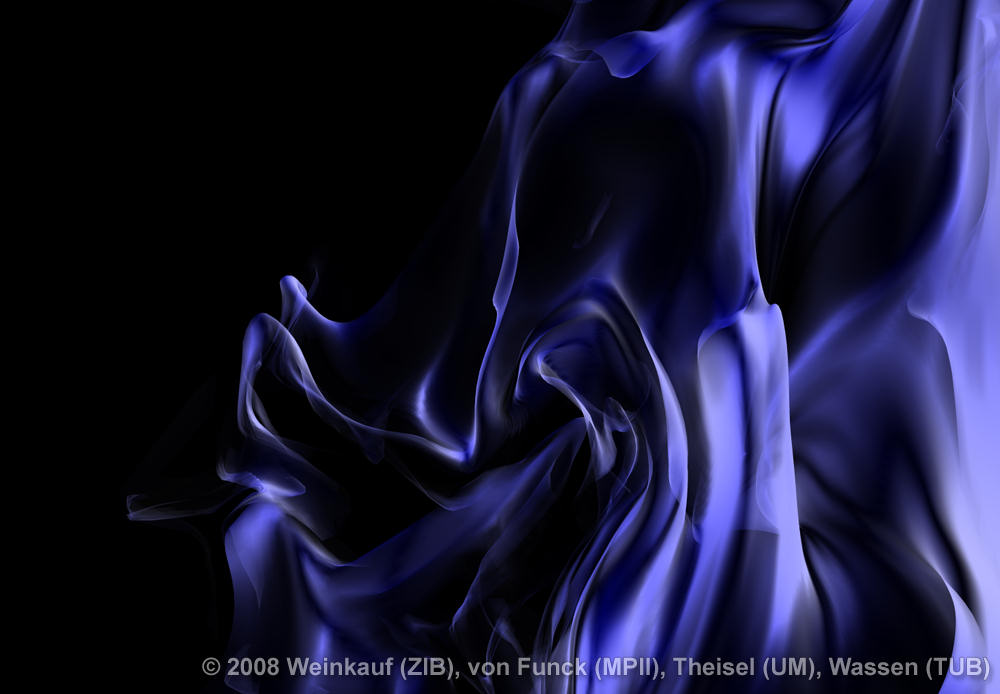

Smoke structures in the flow around the Ahmed body elucidate the turbulence of the flow as well as the capability of smoke surfaces to capture such intricate flow features.
Smoke structures in the flow around the Ahmed body elucidate the turbulence of the flow as well as the capability of smoke surfaces to capture such intricate flow features.

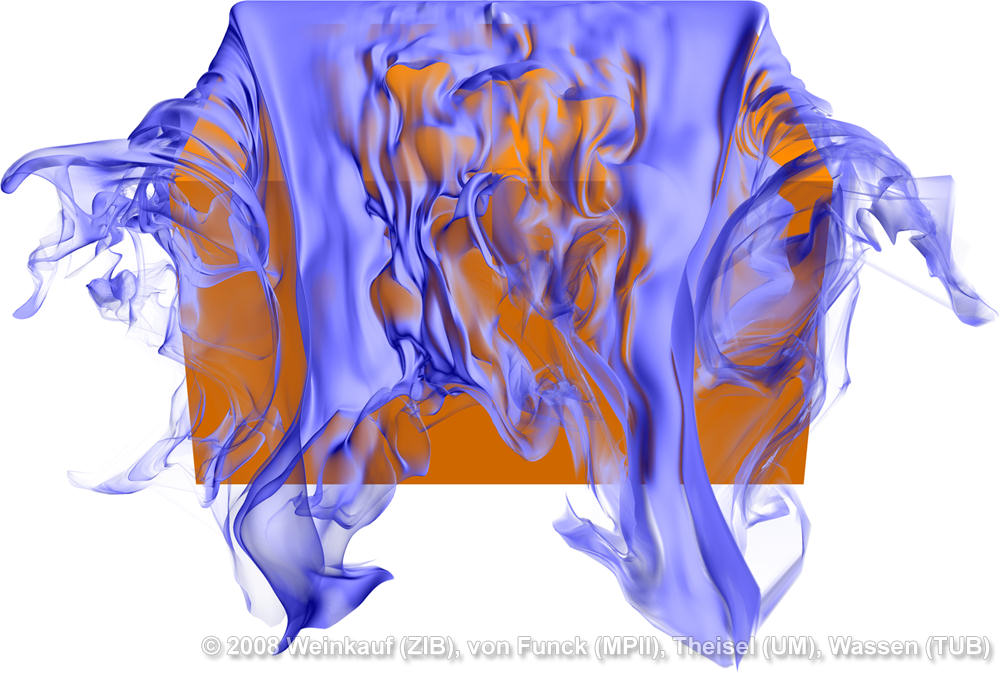

AhmedSmokeBackCompare
AhmedSmokeBackCompare

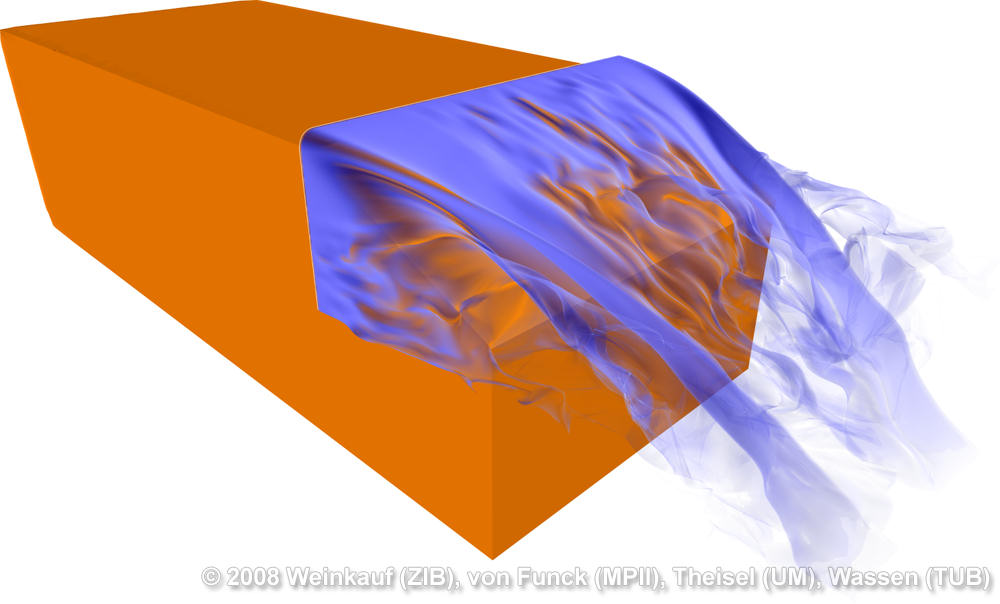

AhmedSmokeSide
AhmedSmokeSide

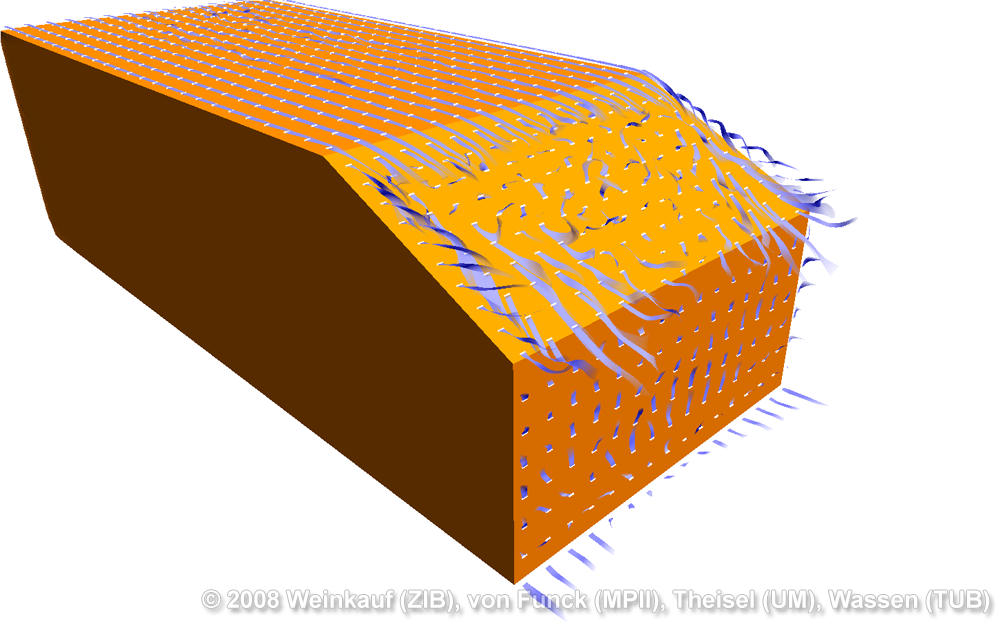

AhmedWoolSide
AhmedWoolSide

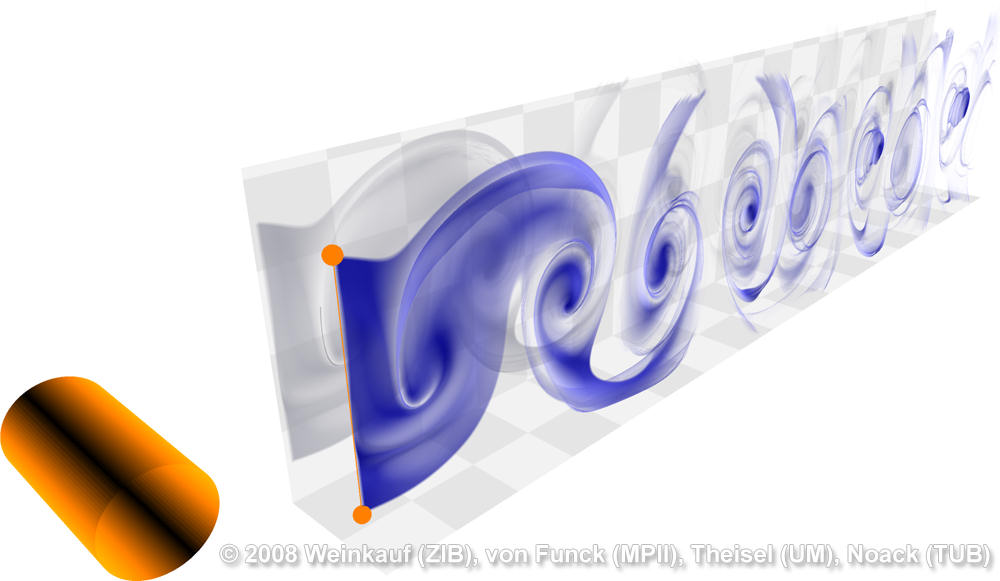

CylinderPODSmokeShadow
CylinderPODSmokeShadow

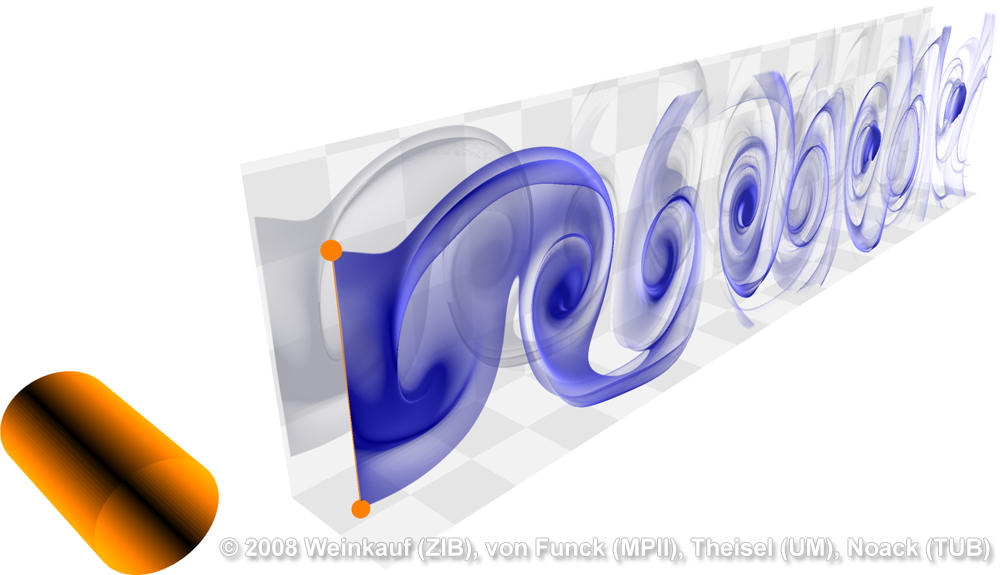

CylinderPODSmokeShadowTruth
CylinderPODSmokeShadowTruth

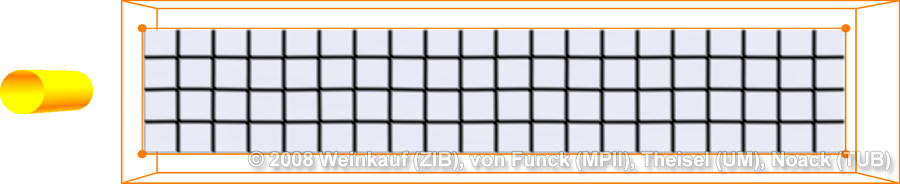

CylinderPODTimeSurface_1033
CylinderPODTimeSurface_1033

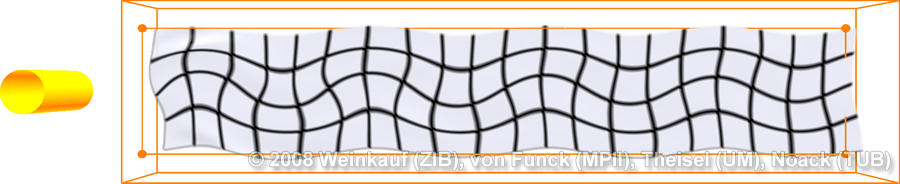

CylinderPODTimeSurface_1076
CylinderPODTimeSurface_1076
CylinderPODTimeSurface_1310
CylinderPODTimeSurface_1310

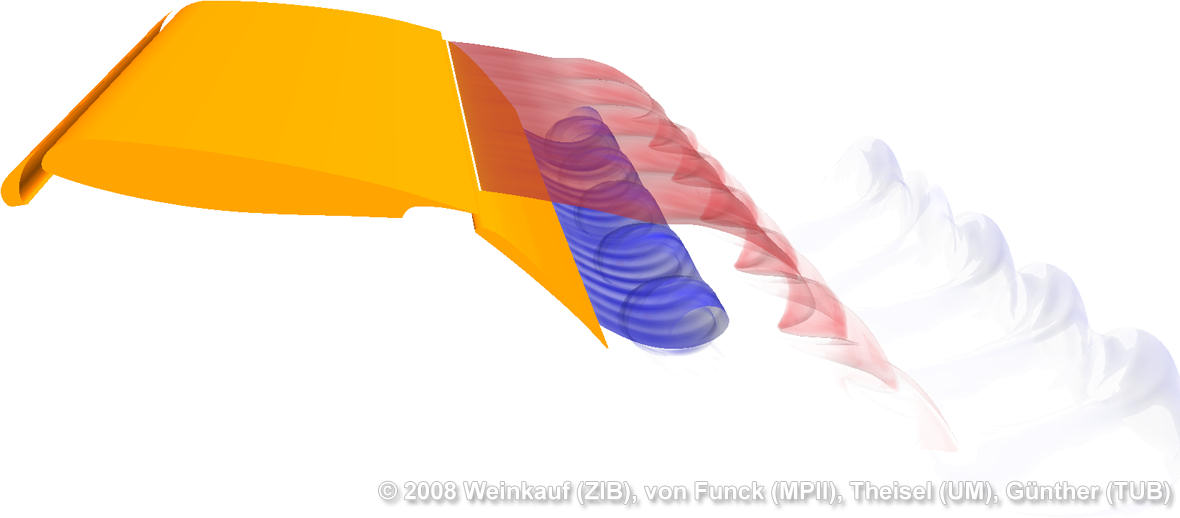

SCCH00Smoke
SCCH00Smoke

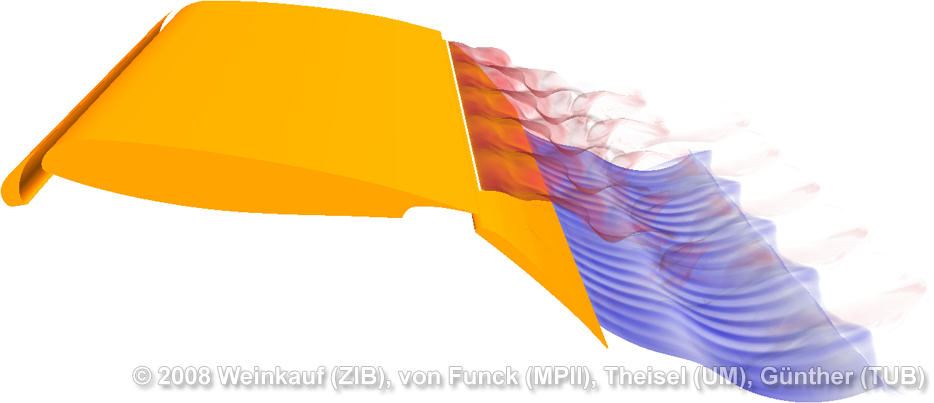

SCCH06Smoke
SCCH06Smoke
SCCH06Wool
SCCH06Wool

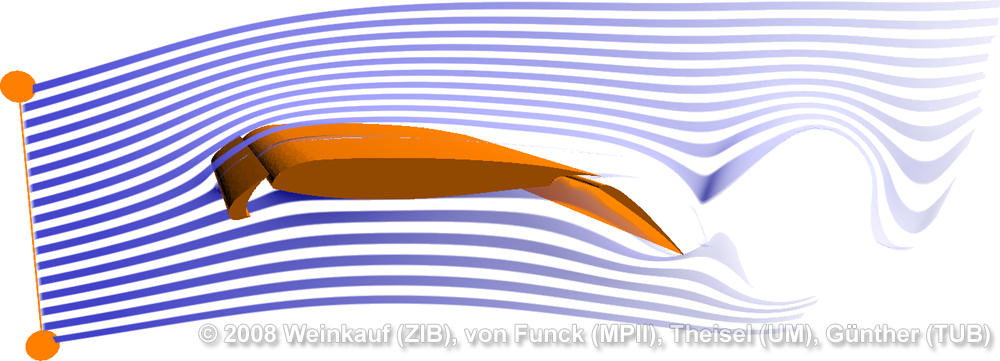

SCCHSmokeNozzles
SCCHSmokeNozzles

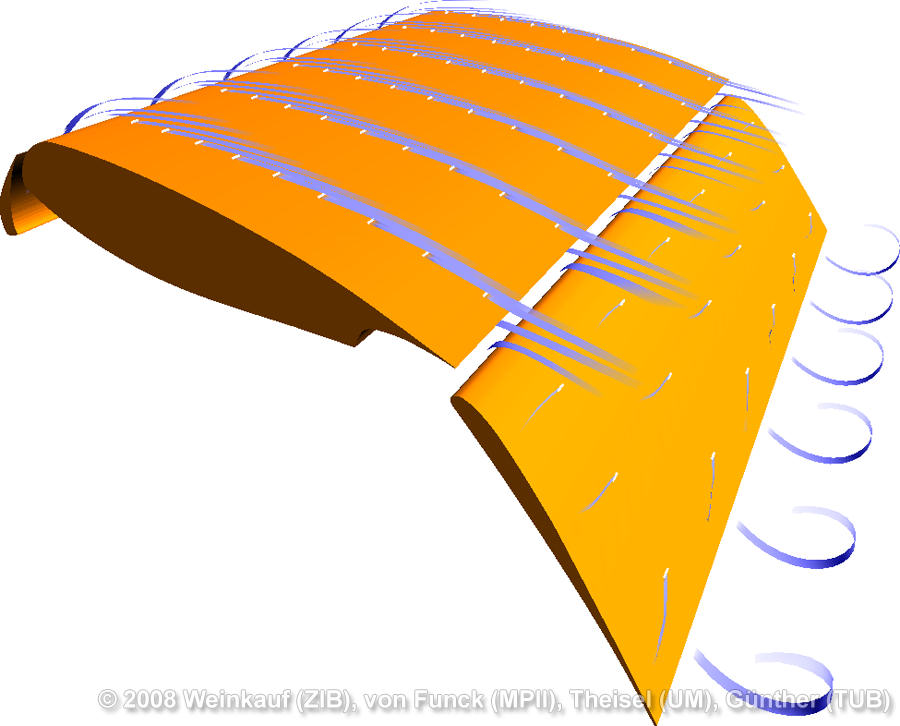

SCCHWool
SCCHWool
SquareCylinder01
SquareCylinder01

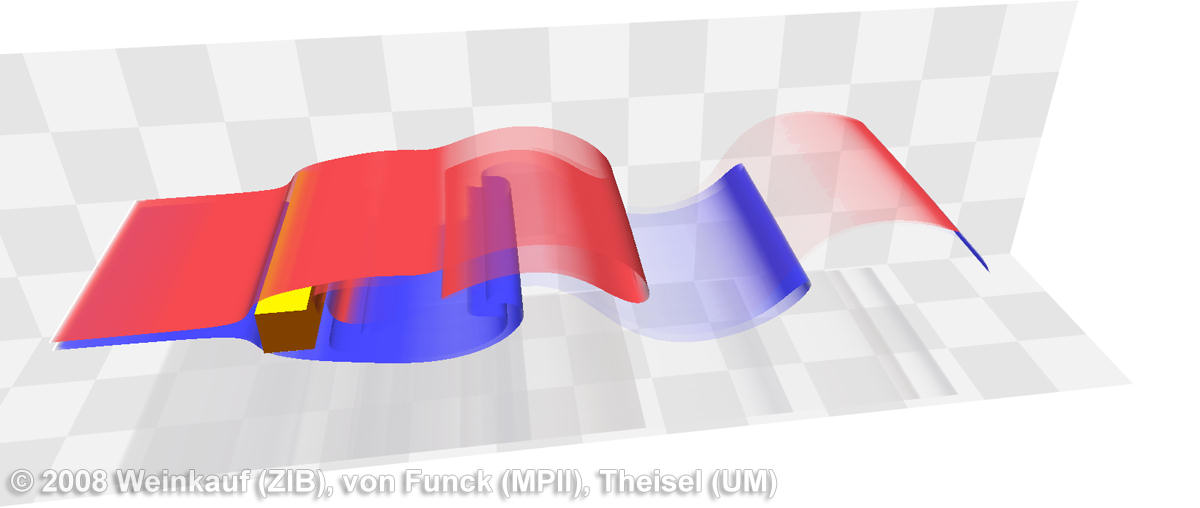

SquareCylinder02
SquareCylinder02
SquareCylinder03
SquareCylinder03
SquareCylinder04
SquareCylinder04

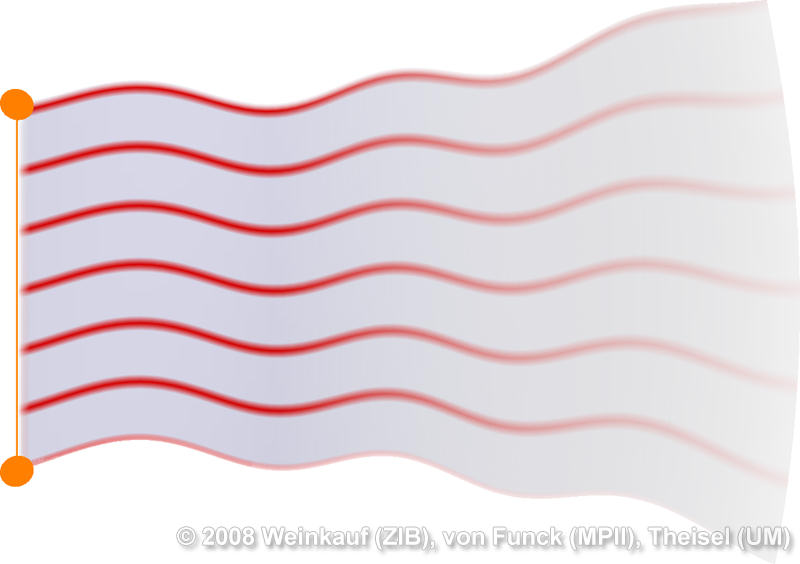

StreakLines
StreakLines

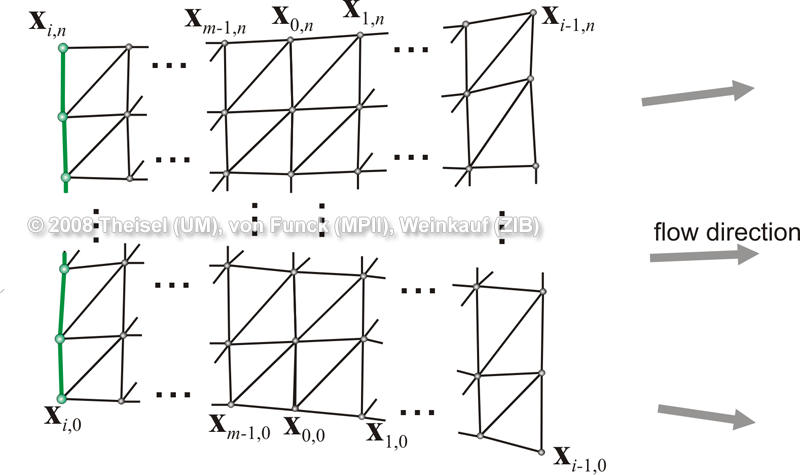

streaksurface
streaksurface
ThickTriangle
ThickTriangle

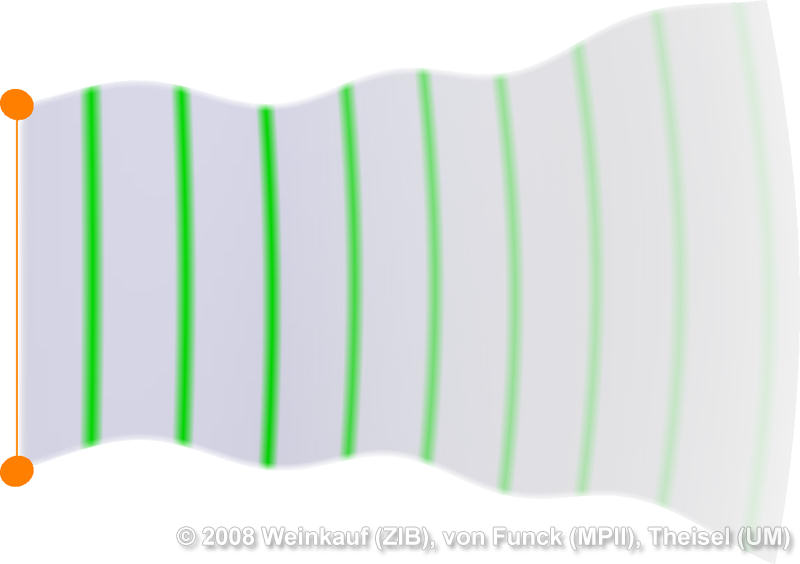

TimeLines
TimeLines
TriangleDistortion
TriangleDistortion

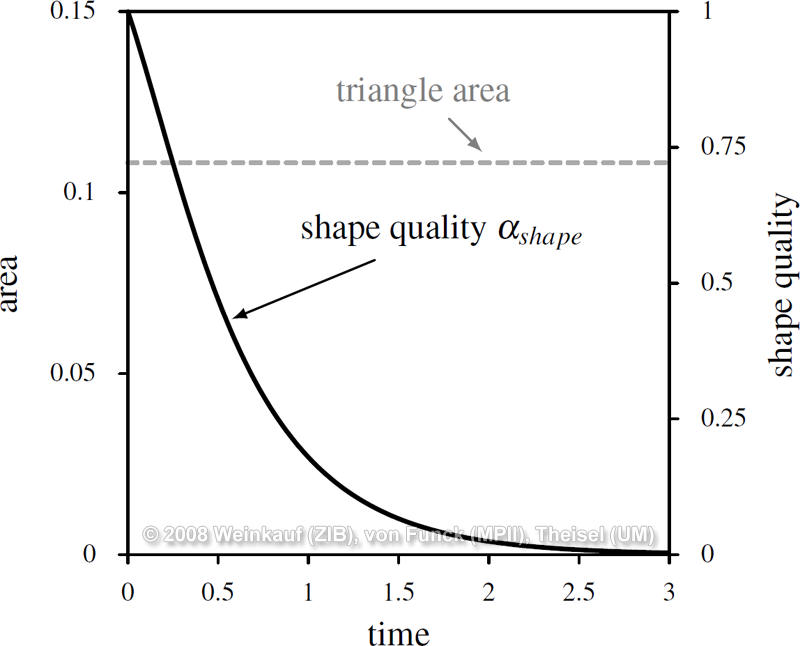

TriangleDistortionPlot
TriangleDistortionPlot
