RandomGrasps

This data set contains 100000 random grasp point-contact configurations formed by uniformly sampled contact points and unit surface normals as well as associated centres of mass. These contact configurations are useful for large scale statistical studies of grasp quality measures but do not necessarily correspond to specific object/hand configurations. Associated grasp quality scores are available for download for further analysis. See the following papers for use cases:

"Classical Grasp Quality Evaluation: New Theory and Algorithms", F. T. Pokorny, D. Kragic, IEEE/RSJ IROS, 2013
"Friction Coefficients and Grasp Synthesis", K. Hang, F. T. Pokorny, D. Kragic, IEEE/RSJ IROS, 2013
"Grasp Moduli Spaces", F. T. Pokorny, K. Hang, D. Kragic, RSS 2013.

This data is freely available for academic/research purposes, just drop me an email to get it: fpokorny (at) kth.se.

Introduction

Here is a snapshot of two grasps in the data-set. Have a look at the tutorial for the FastGrasp library to download the python scripts to work with this data.

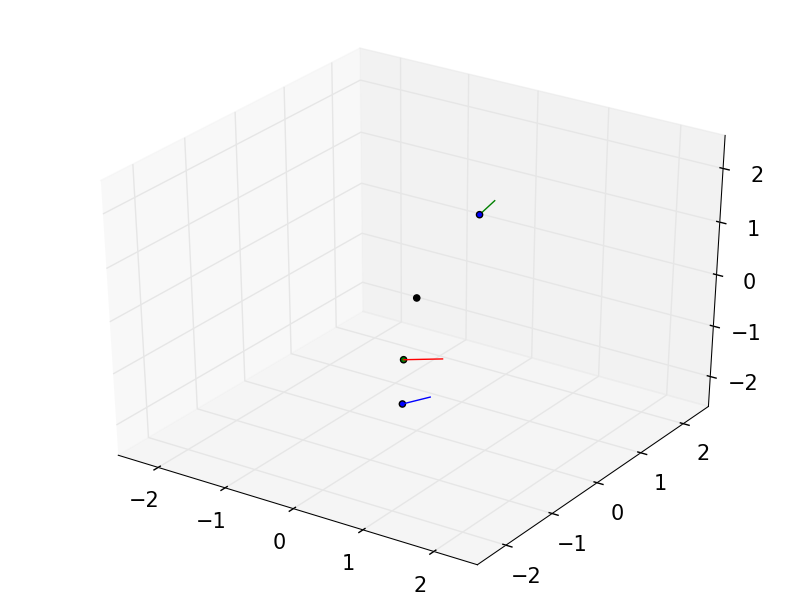

An unstable grasp

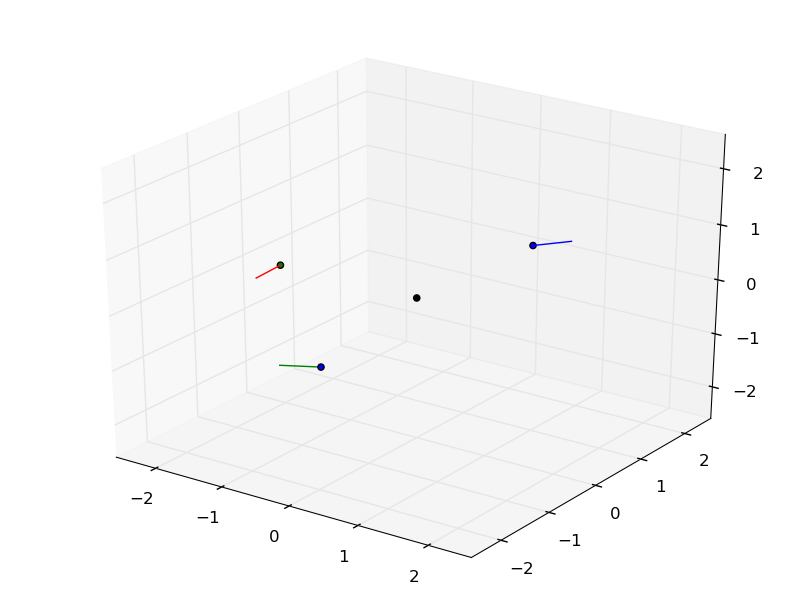

A stable grasp

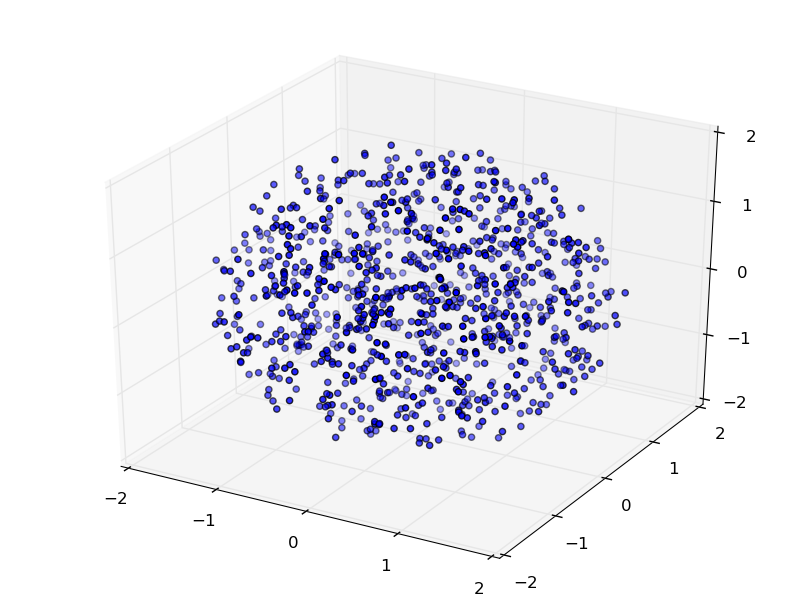

The positions of contact 1 for the first 1000 grasps

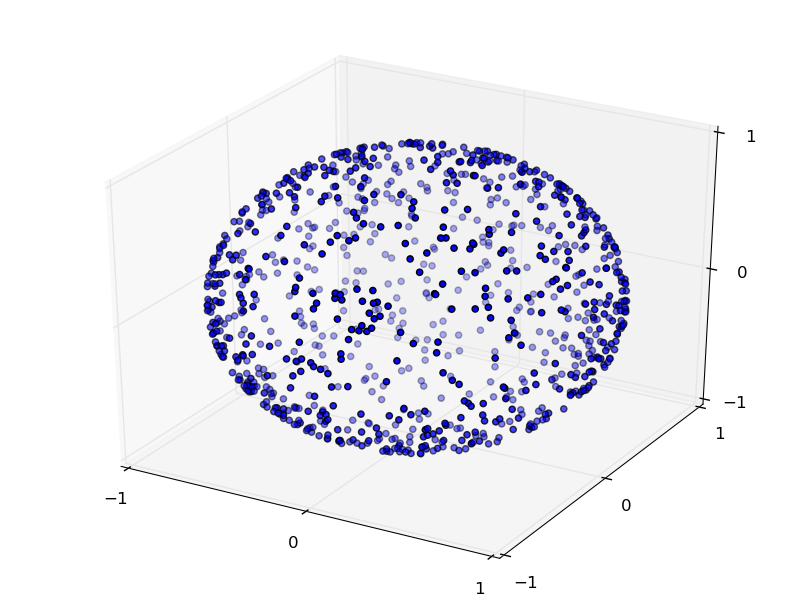

The normals of contact 1 for the first 1000 grasps

Files

grasps100k.npy

A numpy matrix which stores one grasp per row and 100000 grasps in total. Each row is of dimension 21. The first 3 columns are the coordinates of the first grasp contact, then follow the 3D coordinates of contact 2, 3, then of the 3 inward pointing unit normal vectors, normal to hypothetical surface parts containing the 3 contacts. Finally, a centre of mass of the hypothetical surface is provided. This is always zero in this grasp set. All grasps lie in the set $\mathcal{D}(2) = \mathbb{B}(2)^3 \times (\mathbb{S}^2)^3 \times \{0\}$, where $\mathbb{B}(2) = \{x\in \mathbb{R}^3: |x|\le 2\}$. All contacts hence have distance at most 2 from the centre of mass (= the origin). The grasps are sampled uniformly in the sense that contact points are sampled from the uniform distribution on the ball $\mathbb{B}(2)$ and unit normals are sampled using the uniform distribution on the 2-sphere $\mathbb{S}^2\subset\mathbb{R}^3$.

grasps100k_qhull.npy

A numpy matrix with $Q_l^-$ grasp quality lower-bound evaluations for each grasp in grasps100k.npy. Columns 1-19 are corresponding to $l=3,4,\ldots,20$ edges per friction cone approximation and column 20 stores the values of $Q_{40}^-$ obtained using a previous implementation of $Q_l^-$ similar to the one provided in FastGrasp. In all computations, we used a friction coefficient of 1. Note that the computation of $Q_{40}^-$ takes significant computational time (several hours) for the full set of 100000 grasps.

grasps_qhull_times.npy

A numpy matrix with computation times for $Q_l^-.$ Here, consider $U_1, \ldots, U_{10}$ to be a splitting of the grasps in grasps100k.npy into 10 consecutive sets of 10000 grasps each. the $i^{th}$ row of grasps_qhull_times.npy gives the wall timings in seconds for the computation of the $Q_l^-$ values for $l=3,4,...,20,40$ for a previous implementation of $Q_l^-$ similar to the one provided in FastGrasp. In all computations, we used a friction coefficient of 1.

grasps100k_unstable.npy

A grasp set analogous to grasps100k.npy. However, here grasps were sampled using rejection sampling and only grasps which satisfied $Q_{20}^-(g) = 0$ were added to the data-set. The vast majority of grasps in this data-set are hence unstable also with respect to the analytic $Q(g)$ grasp quality. This data-set is used to test our unstable grasp rejection algorithm. In all computations, we used a friction coefficient of 1.

grasps100k_upper.npy

A numpy matrix with one row per grasp in grasps100k.npy. Each row stores the results of a version of Algorithm 2 in "Classical Grasp Quality Evaluation: New Theory and Algorithms" which can be used to determine an upper bound to the grasp quality $Q$. Each row stores the final $q^+$ value of that Algorithm (see paper) and $N = 1000$ iterations and $M\in \{1, 5, 10, 20, 30, 40, 50\}$ random samples (see paper). Note that $\max(0, q^+(g))$ yields an upper bound for $Q(g)$. In all computations, we used a friction coefficient of 1.

grasps100k_upper_times.npy

A numpy matrix storing the wall times for the computation leading to grasps100k_upper.npy. The $i^{th}$ row records computation times for grasp $10000i$ to $10000(i+1)-1$. Each row has 7 entries corresponding to the parameter setting $M \in \{1, 5, 10, 20, 30, 40, 50\}$. In all computations, we used a friction coefficient of 1.
